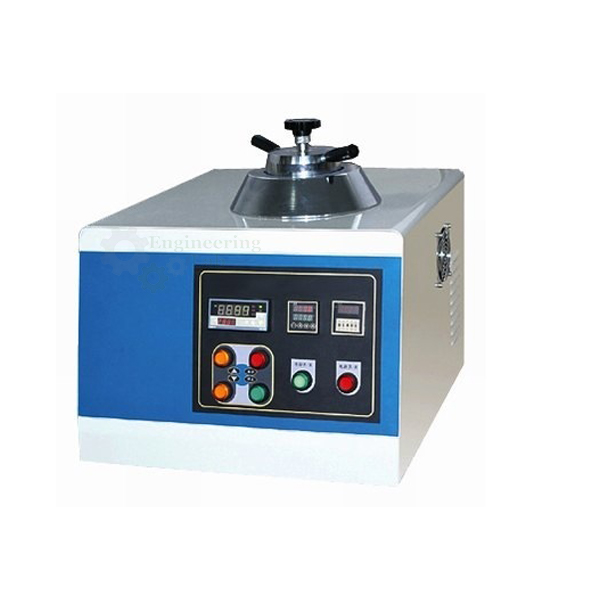

Specimen Mounting Press

Specimen Mounting Press

Product Code : EL-STLE-10568

Quick Answer: The Specimen Mounting Press is an automatic mounting press for metallographic specimens, suitable for all thermosetting materials, that automatically finishes with the set heating temperature, holding time, and acting force, can produce 2 specimens at one time, and offers 4 changeable specification patterns for difficult specimens.
This Machine is Automatic Mounting Press for metallographic specimen.
It can automatically finish with the heating temperature, the holding time and acting force.
The operator can change 4 specification patterns according to the difficult specimens.
It can make 2 specimens at one time.
It is suitable for all Thermosetting Materials, because of the cooling system.

SPECIFICATION :
Pattern specimen : Φ25mm, Φ30mm, Φ40mm, Φ50mm
Maximum consumption: 1800W
Pressure: 0~2Mpa
Temperature: 0~300°C
Holding time: 0~99minutes and 99 seconds
Cooling: Water cooling
Weight: 110Kg
Out line dimension: 615 x 510x 500mm
Power: 220V 50Hz
