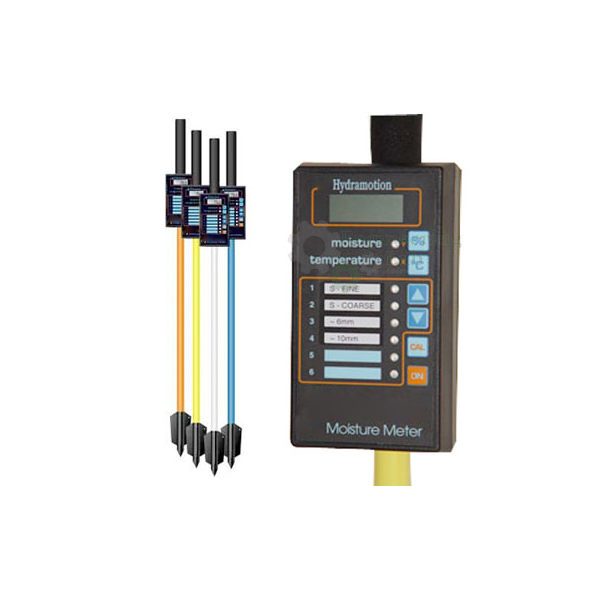

Instant Moisture & Temperature Tester
Product Code : EL-ATLE-10489
Instant Moisture & Temperature Tester (code EL-ATLE-10489) is a probe instrument that measures the moisture and temperature of building materials such as sand, aggregates and mixes at depths of up to approximately 1 m, simply by insertion. It reads moisture over a typical range of 0-25% and temperature from -20 to 60 °C, with 0.1% and 0.1 °C resolution, runs on 4 × 1.5 V AA cells and is about 1.2 m long and 2 kg in weight.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Moisture and temperature of building materials such as sand, aggregates and mixes |
| Measuring depth | Up to 1 m approx., by insertion |
| Electronics | Built-in computer for a wide range of materials and water contents |
| Calibration | Standard calibration for sands and aggregates; recalibration in the field for virtually any material or mixture with the built-in recalibration facility |
| Display | Digital readings shown instantly |
| Battery | 4 × 1.5 V AA cells |
| Moisture range | 0-25% (typical) |
| Temperature range | -20 to 60 °C (typical) |
| Moisture accuracy | Better than 0.5% over a given range |
| Temperature accuracy | Better than 0.5 °C |
| Resolution | Moisture 0.1%; temperature 0.1 °C |
| Temperature detector | Platinum resistance detector |
| Moisture principle | Temperature compensated electric field |
| Temperature principle | BS 1904 – DIN 751 |
| Total length | 1.2 m (approx.) |
| Weight | 2 kg (approx.) |
| Standards | ASTM and BS |
| Product code | EL-ATLE-10489 |
| Supplier | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Instant Moisture & Temperature Tester Used For?
Moisture in sand and aggregate changes the amount of water a concrete or mortar mix actually receives, so batching is adjusted for the water the aggregate carries. The operator pushes the probe into the stockpile, bin or mix to the depth required, up to about 1 m, and the moisture and temperature readings appear at once on the digital display. For sands and aggregates the standard calibration is used; for other materials or mixtures the operator recalibrates the meter on site with its built-in facility. Readings can be taken at several points to see how moisture varies through a stockpile.
What to Specify When Ordering
- Quantity — the number of moisture and temperature testers required.
Frequently Asked Questions
Which materials can the tester measure?
It measures moisture and temperature in building materials such as sand, aggregates and mixes, and it can be recalibrated in the field for virtually any material or mixture.
How deep can readings be taken?
The probe takes readings at depths of up to approximately 1 m simply by insertion, and the instrument has a total length of about 1.2 m.
What ranges and resolution does it offer?
Typical ranges are 0-25% for moisture and -20 to 60 °C for temperature, with a resolution of 0.1% and 0.1 °C respectively.
What accuracy is given for moisture and temperature?
Moisture accuracy is better than 0.5% over a given range, and temperature accuracy is better than 0.5 °C, measured with a platinum resistance detector.
How does it measure moisture?
Moisture is sensed by a temperature compensated electric field, and temperature by a platinum resistance detector; the standards listed for the temperature principle are BS 1904 and DIN 751.
What power source does it use?
It runs on 4 × 1.5 V AA cells and weighs approximately 2 kg, with readings shown digitally as soon as the probe is inserted.
About the Supplier
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India, supplies the Instant Moisture & Temperature Tester together with its own aggregate testing equipment for grading, strength, abrasion and shape tests. Engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas buy from the company, and tender and OEM enquiries are handled through the Tenders/OEM page.
