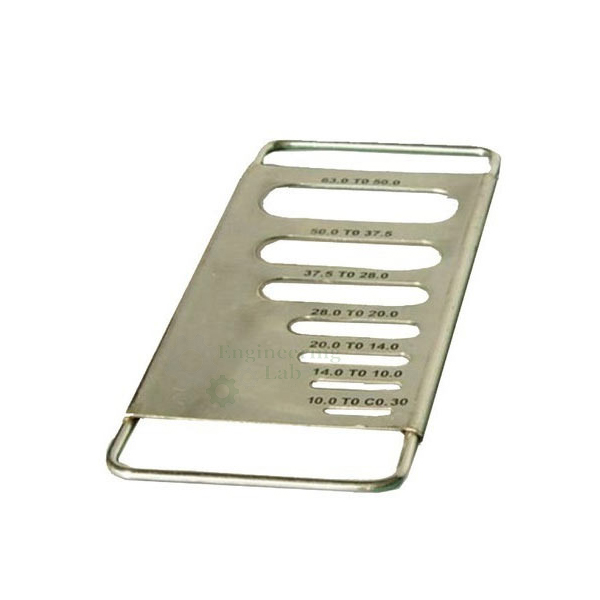

Thickness Gauge

Thickness Gauge

Product Code : EL-ATLE-10474

Quick Answer: The Thickness Gauge determines whether aggregate particles are flaky, i.e. their thickness is less than 0.6 of their nominal size, per BS 812-105.1. The aggregate to be classified is separated into seven sieve fractions from 6.3 to 63 mm, each examined separately using corresponding slot sizes of 4.9 x 30 mm, 7.2 x 40 mm, 10.2 x 50 mm, 14.4 x 60 mm, 19.7 x 80 mm, 26.3 x 90 mm and 33.9 x 100 mm; dimensions are 310x130x10 mm and weight approximately 0.4 kg.
The Thickness Gauge is used to determine if the aggregate particles are to be considered as flaky, i.e. their thickness is less than 0.6 of their nominal size. The aggregate to be classified is separated into seven sieve fractions from 6.3 to 63 mm, and each fraction is examined separately, using slot sizes of 4.9 x 30 mm, 7.2 x 40 mm, 10.2 x 50 mm, 14.4 x 60 mm, 19.7 x 80 mm, 26.3 x 90 mm and 33.9 x 100 mm.
Dimensions: 310x130x10 mm
Weight (approx.): 0,4 kg

Standards: BS 812-105.1

Contact Engineering Lab Equipment for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned engineering educational equipments manufacturer, engineering educational equipments in india, physics lab engineering equipment suppliers, civil engineering lab equipments, civil engineering lab instruments, engineering equipment manufacturer in Ambala, India.

Last Updated: September 2026

Related Products: Flakiness Sieve Set, Shape Index Caliper, Length Gauge Elongation Gauge, Average Least Dimension
