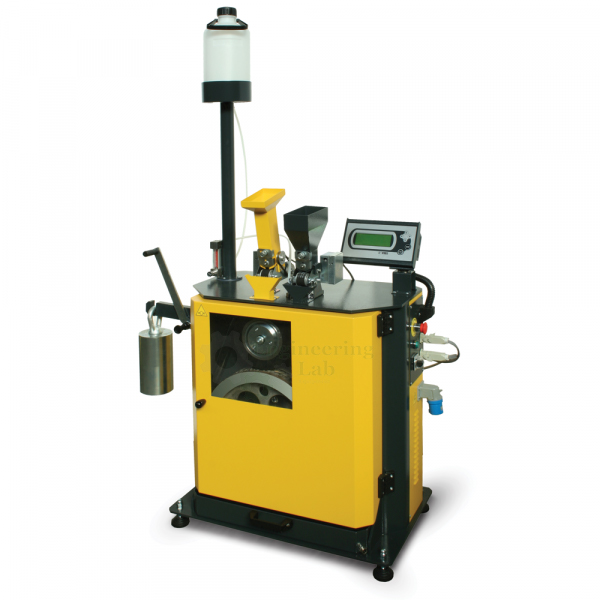

Accelerated Polishing Machine
Product Code : EL-ATLE-10485
Accelerated Polishing Machine (code EL-ATLE-10485) is a machine for polishing aggregate test specimens, which are fixed round a rotating road wheel while a loaded tyre runs on them. It holds 14 specimens, applies a load of (725 ± 10) N through a 200 ± 3 mm tyred wheel, runs the road wheel at 320 ± 5 rev/min under inverter speed control and operates on a 230 V/110 V, 50/60 Hz single phase supply.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Polishing aggregate test specimens |
| Construction and drive | |
| Main spindle | High ground steel, running in sealed ball bearings with an additional labyrinth seal; axially loaded to eliminate end play |
| Motor speed control | Adjustable 3-phase motor speed control with adjustable timing belt drive |
| Inverter drive | Inverter drive to the motor for speed control |
| Timer and counter | Digital display preset timer and revolution counter |
| Mainframe | Welded steel, standing on adjustable pads |
| Guards | Covers and guards, removable for maintenance |
| Specimens, water and abrasive | |
| Specimens | 14, located on the road wheel by rubber rings and held by simple side fixing |
| Specimen moulds | Specimens are made in, and removed from, machined moulds |
| Water feed | Gravity fed from a high level tank through a calibrated flow meter |
| Waste tray | Removable tray collects used abrasive and water |
| Tyre lifting | Mechanical lifting device raises and lowers the loaded tyre to the running surface |
| Technical specifications | |
| Applied load on wheel | (725 ± 10) N |
| Road wheel speed | 320 ± 5 rev/min |
| Tyred wheel diameter | 200 ± 3 mm |
| Tyred wheel width | 38 ± 2 mm |
| Tyred wheel hardness | (69 ± 3) mm IRHD |
| Water tank height | 155 cm |
| Electrical supply | 230 V / 110 V, 50/60 Hz, single phase, 13 amp |
| Dimensions | 810 × 790 × 1230 mm (W × D × H) |
| Palletised dimensions | 1200 × 800 × 1280 mm (W × D × H) |
| Weight | 210 kg (max.) |
| Supply | |
| Product code | EL-ATLE-10485 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Accelerated Polishing Machine Used For?
Aggregate in a road surface is gradually polished by tyres, and a stone that polishes quickly gives a slippery road, so surfacing aggregates are tested for their resistance to polishing. Specimens made from the aggregate in the moulds are fixed round the road wheel, the loaded tyre is lowered onto them, and the wheel is run at the set speed for the time entered on the preset timer while water from the high level tank and abrasive are fed onto the running surface. Spent abrasive and water drain into the tray. The polished specimens are then tested for friction, from which the polished stone value is obtained.
What to Specify When Ordering
- Quantity — the number of polishing machines required.
- Electrical supply — 230 V or 110 V, 50/60 Hz single phase.
Frequently Asked Questions
How many specimens does the Accelerated Polishing Machine take?
Fourteen specimens are located on the road wheel by rubber rings and held in place by simple side fixing, so a full set is polished in a single run.
What load and speed are used?
The loaded tyre applies (725 ± 10) N to the specimens, and the road wheel turns at 320 ± 5 rev/min under inverter speed control.
What are the tyred wheel dimensions?
The tyred wheel set measures 200 ± 3 mm in diameter and 38 ± 2 mm in width, and it is raised and lowered onto the specimens by a mechanical lifting device.
How is water supplied during polishing?
Water is gravity fed from a high level tank through a calibrated flow meter, with a water tank height of 155 cm, and the used abrasive and water collect in a removable tray.
What electrical supply and space does it need?
It runs on 230 V or 110 V, 50/60 Hz single phase at 13 amp, measures 810 × 790 × 1230 mm (W × D × H) and weighs up to 210 kg.
What happens to the specimens after polishing?
The polished specimens are tested for friction, and the result is used to judge how well the aggregate will resist polishing by traffic in a road surface.
OEM Manufacturer
The Accelerated Polishing Machine is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests aggregate testing equipment for grading, strength, abrasion and shape tests for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
