Pulverizer

Product Code : EL-ATLE-10487

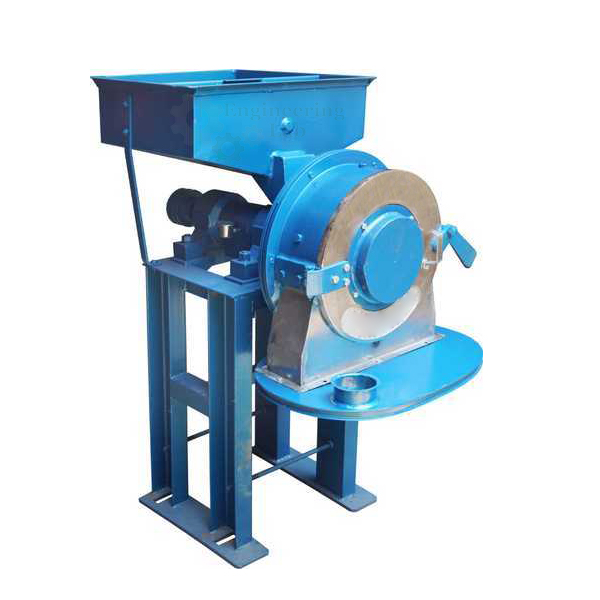

Pulverizer (code EL-ATLE-10487) is a self-contained grinder that reduces material to fine mesh samples by means of a rotating disc with planetary movement in the vertical plane. Its 175 mm diameter grinding wheel is high carbon steel of 53-60 HRC hardness, it accepts material up to 6 mm, it grinds about 450 g of quartz-type material to 100 mesh in one minute, and it runs on a 440 V, three phase A.C. supply.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Pulverizer Used For?

Chemical analysis and many fineness tests need a small, finely ground portion of material, so crushed samples are pulverised before they are analysed. The operator feeds material already reduced to 6 mm or less into the grinder, where the planetary motion of the disc against the hardened grinding wheel breaks it down; roughly 450 g of quartz-type material reaches about 100 mesh after one minute. In cement and chemical laboratories the ground powder is then sampled for analysis.

What to Specify When Ordering

• Quantity — the number of pulverizers required.

Frequently Asked Questions

What kind of grinder is the Pulverizer?
It is a self-contained grinder in which a rotating disc with planetary movement in the vertical plane grinds material down to fine mesh samples.

What size of material can be fed in?
The input size of material is 6 mm, so coarser lumps need to be broken down to this size before they are fed into the grinder.

How fast does it grind?
It reduces about 450 g of quartz-type material to 100 mesh in one minute of grinding.

What is the grinding wheel made of?
The grinding wheel is 175 mm in diameter and made of high carbon steel with a hardness of 53-60 HRC.

Which power supply is needed?
The Pulverizer is designed for operation on a 440 V, three phase A.C. supply, and it is used in the cement and chemical industries.

How can a Pulverizer be ordered?
Order through the Add To Cart enquiry button on this page, or use the contact page to send the number of units and the place they are to be delivered.

OEM Manufacturer

Buyers of the Pulverizer deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests aggregate testing equipment for grading, strength, abrasion and shape tests, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.

Related Aggregate Testing Equipment

• Jaw Crusher — laboratory crusher with manganese steel jaws, 3 to 10 mm discharge setting and 440 V three phase drive.
• High Capacity Sieve Shaker — 30 litre shaker for coarse materials taking six 457 × 660 mm screen trays and a dustpan.
• Sample Splitter — cadmium-plated divider for sand and aggregate samples up to 108 mm, with 30 litre clam shell hopper.
• Riffle Sample Divider — sheet metal riffle box on legs with equal-width chutes, in sizes from 7 to 75 mm.

See the full Aggregate Testing Lab Equipment range or all Civil Engineering Lab Equipment.

Request a Quote

For this and other aggregate testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of pulverizers required and your delivery location through the contact page, or add the Pulverizer to the enquiry cart from this page.
