V Funnel Test Apparatus

Product Code : EL-CTLE-10301

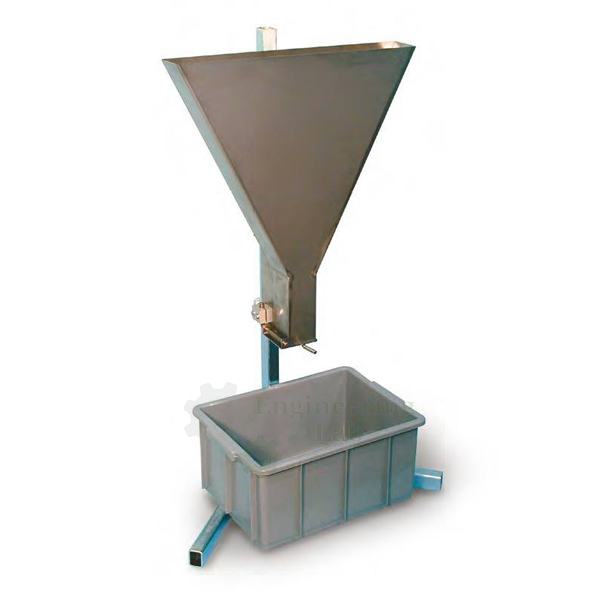

V Funnel Test Apparatus (code EL-CTLE-10301) is a stainless steel funnel, held vertically on a supporting stand, for evaluating the flow time of freshly mixed self compacting concrete. Its discharge orifice has a lid that can be opened momentarily, the set comes with a filling hopper and base, and the test is not suitable for concrete whose maximum aggregate size exceeds 22.4 mm.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the V Funnel Test Apparatus Used For?

Flow time shows how readily self compacting concrete moves through a narrow opening: a mix that drains slowly may be too viscous, while one that drains very fast may be prone to segregation. With the lid shut, the funnel is filled to the top through the filling hopper and the surface is levelled; the lid is then opened and the time taken for the funnel to empty, watched from above, is recorded as the V funnel flow time. The test is not used for mixes whose aggregate exceeds 22.4 mm. The standard listed for the funnel is EN 12350-9.

What to Specify When Ordering

• Quantity — the number of V funnel sets required.

Frequently Asked Questions

What does the V funnel test measure?
It evaluates the flow time of freshly mixed self compacting concrete, the time the concrete takes to run out of the funnel once the lid on the discharge orifice is opened.

Is there a limit on the aggregate size for the V funnel?
Yes. The V funnel test cannot be used for concrete whose largest aggregate is bigger than 22.4 mm.

How is the funnel supported and closed?
The stainless steel funnel stands vertically on a supporting stand, and its discharge orifice is closed by a lid that can be opened momentarily to start the flow.

What accessories come with the V funnel?
The V Funnel apparatus is supplied with a filling hopper and a base, together with the funnel itself and its supporting stand.

How is the V funnel flow time read?
Timing starts when the lid on the discharge orifice is opened and stops when the funnel has emptied; the elapsed time is the flow time of the mix.

OEM Manufacturer

Buyers of the V Funnel Test Apparatus deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.

Related Concrete Testing Equipment

• Prism Mould Three Gang — three gang mould for 40.1 × 40 × 160 mm prisms, individually verified, with base.
• Straight Edge — flat steel strike-off bar, 1 × 12 in, for cube, cylinder, slump cone and air meter work.
• Fill Box Apparatus-Kajima Test — transparent 500 × 300 × 900 mm fill box for SCC with 20 mm maximum aggregate.

See the full Concrete Testing Lab Equipment range or all Civil Engineering Lab Equipment.

Request a Quote

For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of V funnel sets required and your delivery location through the contact page, or add the V Funnel Test Apparatus to the enquiry cart from this page.
