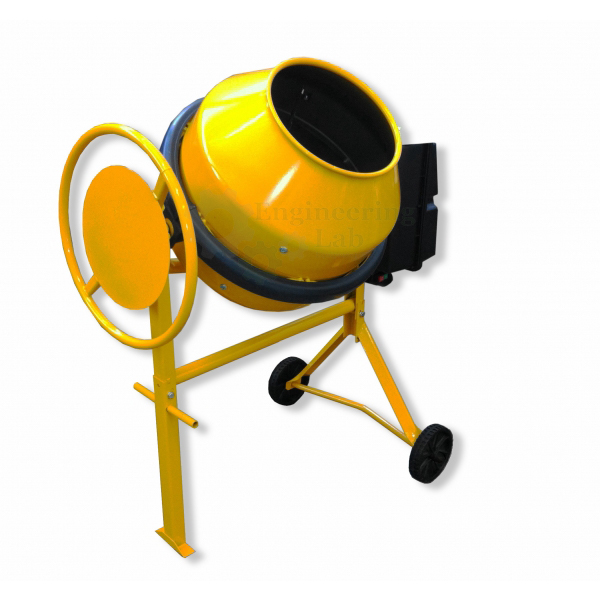

Laboratory Drum Type Mixer
Product Code : EL-CTLE-10289
Quick Answer:
A Laboratory Drum Type Mixer is used to prepare small-volume concrete batches in the laboratory so that the effects of different constituents on concrete properties can be studied. It has a 125-litre mixing pan with an effective mixing capacity of 75 litres of concrete, runs on rubber wheels for high mobility, and uses a second engine to rotate the stirring beater in the opposite direction to the mixing drum’s rotation direction for effective mixing of small volumes.
To find out the effects of different constituents on the concrete properties, it is necessary to prepare numerous, smaller-volume concrete batches in the laboratory. The mixing pan has a dimensional volume of 125 litres and an effective mixing capacity of 75 litres, and the mixer is equipped with rubber wheels which provide high mobility. Its ability to mix small volumes of mixtures with high performance comes from a second engine, which rotates the stirring beater in the opposite direction of the mixing drum’s rotation direction. The mixing drum can be tilted to empty the mixture without hassle and it can be removed for easy cleaning on completion of the mixing operation. All parts of the mixer are galvanized and painted with non-corrosive paint, and the protection class of the machine is IP55.
Technical Specifications :
Drum volume: 125 litres
Power supply: 230V 1ph 50 Hz – 0,3 HP
Yield: 75 litres of concrete
Dimensions: 720x1320x1280 mm
Weight: 60 Kg
Standards: BS and IS
Standards: BS and IS
