Sieve Shaker Hand Operated
Product Code : EL-STLE-10946

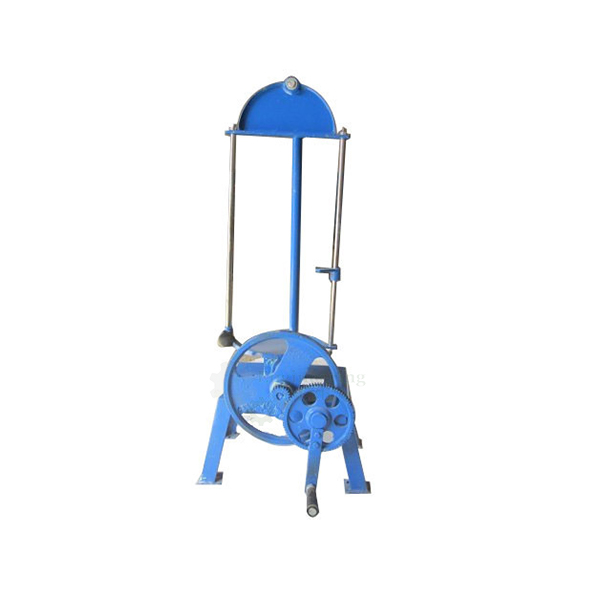

Sieve Shaker Hand Operated (code EL-STLE-10946) is a bench-mounted, hand-driven sieve shaker in which a hand wheel works a train of gears that moves the sieve carrier from side to side. The carrier takes up to 7 sieves of 200 mm diameter, a heavy fly wheel keeps the motion smooth, and the shaker is available in 200 mm, 300 mm and 450 mm diameter sizes.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Mounting | Suitable for bench mounting |
| Motion | Side-to-side movement of the sieve carrier |
| Sieve capacity | Up to 7 sieves of 200 mm diameter |
| Drive | Train of gears operated by a hand wheel |
| Fly wheel | Heavy fly wheel for smooth operation |
| Available sizes | 200 mm, 300 mm and 450 mm diameter |
| Product code | EL-STLE-10946 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Sieve Shaker Hand Operated Used For?
A hand operated shaker gives a regular, repeatable sieving motion where no power supply is available or where sieving is only occasional, and it spares the operator the effort of shaking a full stack by hand. The shaker is fixed to a bench, the nest of sieves is placed in the carrier and the operator turns the hand wheel; the gear train turns this into a side-to-side movement and the heavy fly wheel evens it out. The material retained on each sieve is weighed at the end to give the grading.
What to Specify When Ordering
- Quantity — how many hand operated shakers are needed.
- Size — the 200 mm, 300 mm or 450 mm diameter version.
Frequently Asked Questions
How is the sieve carrier moved?
Turning the hand wheel drives a train of gears that moves the carrier from side to side, and a heavy fly wheel keeps the movement smooth.
How many sieves does the carrier take?
The carrier holds up to 7 sieves of 200 mm diameter, stacked together for a single sieving run.
Which sizes are available?
The hand operated shaker is available in 200 mm, 300 mm and 450 mm diameter sizes, to suit the sieves in use.
Does it need a power supply or fixed mounting?
It is worked by hand through the hand wheel, so no electrical supply is involved, and it is designed to be mounted on a laboratory bench.
OEM Manufacturer
Buyers of the Sieve Shaker Hand Operated deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests soil testing equipment for classification, compaction, density, shear and consolidation tests, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
Related Soil Testing Equipment
- Sieve Shaker Rotap Type — motorised tapping sieve shaker with oil-immersed mechanism for up to 7 sieves of 150 or 200 mm.
- Brass Frame Sieves — full-depth test sieves in 200 to 450 mm diameters with stainless steel frames and wire cloth.
- G. I. Frame Sieves — woven wire test sieves for wet testing, 200 to 450 mm frames, 125 mm to 20 micron apertures.
- Wet Sieve Shaker — belt driven wet sieving machine with water reservoir and holder for up to 7 sieves of 8 inch.
See the full Soil Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other soil testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of shakers and the size, 200 mm, 300 mm or 450 mm and your delivery location through the contact page, or add the Sieve Shaker Hand Operated to the enquiry cart from this page.
