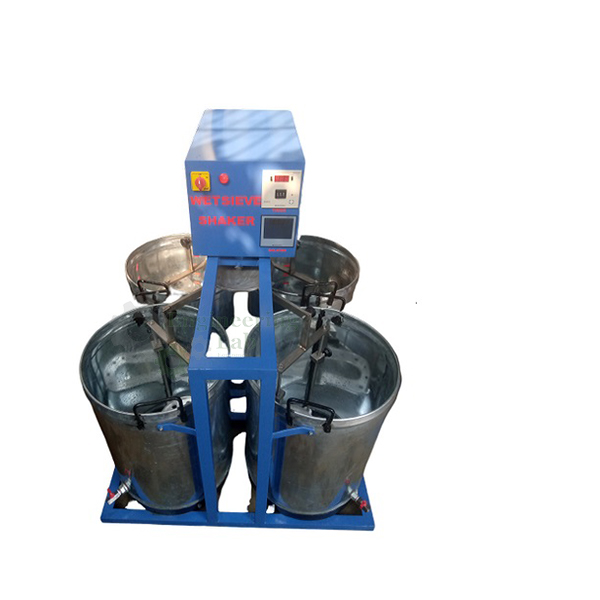

Wet Sieve Shaker
Product Code : EL-STLE-10952
Quick Answer: The Wet Sieve Shaker is used to perform wet sieve testing on soil, providing basic index information used to estimate strength and permeability -- the first classification step for granular soils, and the method used when dry testing cannot reliably or reproducibly separate materials that are not soluble in water. It consists of a water reservoir and a holder that can accommodate up to 7 sieves of 8 inch diameter (150mm or 200mm), is driven by a heavy-duty, 1/4 HP belt-driven motor with an optional automatic imported timer, and is certified to ISO and CE.
The purpose of the wet sieve test is to get basic index information about the soil, which is used to estimate strength and permeability. It is the first sort of classification for granular soils. There are some materials that, when tested dry, produce but accurate particle analysis results, and if the fabric isn't soluble in water and reproducible results are difficult to get, then wet testing could also be the tactic required to supply accurate data. This kit offers a convenient alternative for wet wash sieving, employing a single tall-frame wet wash sieve.
The Wet Sieve Shaker consists of a water reservoir and a holder which can hold up to 7 sieves of 8 inch diameter (150 MM or 200 MM). A heavy duty belt driven motor (1/4 HP) is used for highly efficient functioning of this wet sieving machine, and an automatic timer of imported material is also available as an option.
Key Features:- Sieving with 3-D effect
- Measuring range 20 µm to 10mm
- Suitable for dry and wet sieving
- For sieve up to 8 inch
- Digital setting and control of sieving parameters
- Low noise, maintenance-free
- Construction: Mild Steel / Stainless Steel
- Test Sieves: Up to 8 inches
- Motor: 1/4 HP Branded
- Accessories: Water Reservoir & Holder
- Timer: Automatic, 0 - 60 Minutes (Optional)
- Power Supply: 230 / 240 Volts
- Certification: ISO and CE
- Capacity: 1 Set of Sieves, 2 Set of Sieves, 4 Set of Sieves
