Working Model of Suspension & Steering Trainer
Product Code : EL-AELE-10749

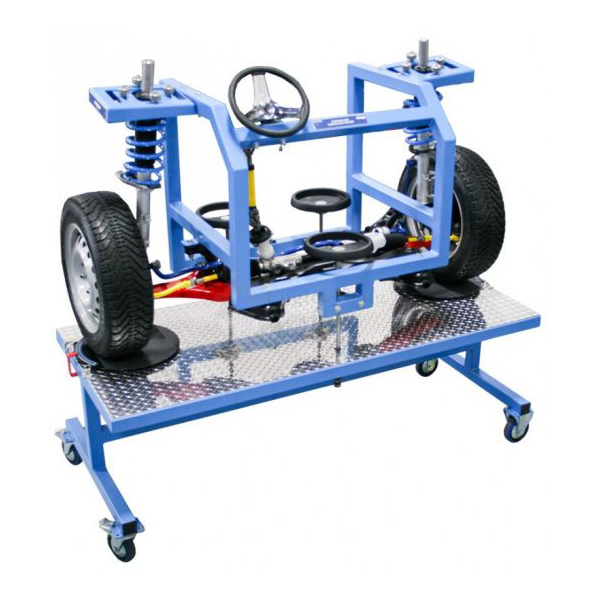

Working Model of Suspension & Steering Trainer (code EL-AELE-10749) is a classroom trainer that helps instructors teach basic alignment geometry and the working of a MacPherson strut suspension with rack and pinion steering, based on a typical front wheel drive vehicle with front disc brakes. It has two movable turntables and a magnetic alignment-measuring gauge for caster, camber and toe work, a plastic coil spring in place of the stock spring, a quick-disconnect sway bar and three frame adjustments, and it needs no electricity, air or hydraulics.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Teaching basic alignment geometry and the function of a MacPherson strut suspension with rack and pinion steering |
| Base vehicle | Typical front wheel drive vehicle with MacPherson strut suspension, rack and pinion steering and front disc brakes |
| Alignment equipment | Two movable turntables and a magnetic alignment-measuring gauge |
| Alignment angles | Caster, camber and toe can be changed, measured and observed |
| Toe adjustment | Tie-rod ends with typical adjustment methods for toe |
| Coil spring | Stock coil spring replaced by a custom plastic coil spring that supports none of the suspension weight, removing the danger of spring pressure |
| Sway bar | Sway and stabilizer bar with quick disconnect for routine service and alignment adjustment |
| Frame adjustments | Three manual adjustments to create abnormal conditions such as uneven front or rear loading and worn springs |
| Steering wheel | Connected to the rack and pinion linkage as in an actual vehicle |
| Range of motion | Full range of motion of all suspension components at any angle |
| Components included | Parts needed for alignment angle adjustment, service and component identification |
| Braking components | Common braking system components can be seen and identified |
| Services needed | No electricity, air or hydraulics; used in a classroom without a vehicle on a rack |
| Dimensions | Approx. 1400 × 1200 × 1400 mm (L × W × H) |
| Weight | Approx. 165 kg |
| Product code | EL-AELE-10749 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Working Model of Suspension & Steering Trainer Used For?
Wheel alignment sets the angles at which the wheels meet the road: caster affects straight-line stability and self-centring, camber is the tilt of the wheel seen from the front, and toe is whether the wheels point slightly in or out, and errors in any of them cause pulling and uneven tyre wear. On the trainer, students set the wheels on the movable turntables, read the angles with the magnetic gauge, alter caster, camber and toe, adjusting toe at the tie-rod ends, and measure again to see the result. Using the three frame adjustments, the instructor can create uneven loading or worn springs, and the quick-disconnect sway bar is released before alignment work.
What to Specify When Ordering
- Quantity — the number of suspension and steering trainers to order.
Frequently Asked Questions
Does the trainer need any utilities?
No. It needs no electricity, air or hydraulics, so alignment work can be taught in a classroom without putting a vehicle on a rack.
Which alignment angles can students adjust?
Students can make changes to caster, camber and toe, measure them with the magnetic alignment-measuring gauge on the two movable turntables and observe the results.
Is the coil spring safe to work on?
The stock coil spring is replaced by a custom plastic coil spring that carries none of the suspension weight, which removes the danger of MacPherson spring pressure.
Can faulty vehicle conditions be simulated?
Yes, the frame has three manual adjustment features for creating abnormal conditions such as uneven front or rear loading and worn springs.
What should an overseas buyer include in an enquiry?
Include the number of trainers, the destination country with its port or city, the preferred terms such as FOB or CIF, any special packing and any tender reference.
What are the dimensions?
The trainer measures approximately 1400 × 1200 × 1400 mm and weighs about 165 kg.
