Cut Model of Single Cylinder Four Stroke Petrol Engine
Product Code : EL-AELE-10731

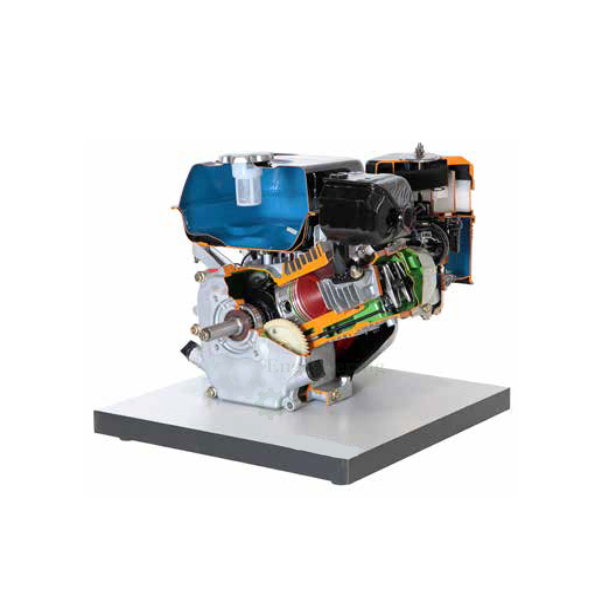

Cut Model of Single Cylinder Four Stroke Petrol Engine (code EL-AELE-10731) is a sectioned single cylinder engine used to teach the internal parts and working of the four stroke petrol cycle. Rated at 6 hp from 160cc, it has overhead valves worked from a camshaft in the crankcase, plus carburettor, air filter, tank, silencer, oil pump and rpm regulator; it is laid out on a base, worked by a crank handle and approx. 480 × 480 × 500 mm in size.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Teaching the internal parts and working of a single cylinder four stroke petrol engine |
| Displacement | 160cc |
| Power | 6 hp |
| Valves | Overhead valves |
| Camshaft position | In the crankcase |
| Fuel and intake | Carburettor, air filter, tank |
| Exhaust | Silencer |
| Lubrication | Oil pump |
| Governing | Rpm regulator |
| Operated | Manually, through a crank handle |
| Equipment layout | On base |
| Dimensions | Approx. 480 × 480 × 500 mm (L × W × H) |
| Weight | Approx. 35 kg |
| Product code | EL-AELE-10731 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Cut Model of Single Cylinder Four Stroke Petrol Engine Used For?
With just a single piston, a single set of valves and a single firing event to follow, this engine keeps the four strokes of induction, compression, power and exhaust straightforward to explain. As the crank handle is turned, students see petrol and air from the carburettor and air filter drawn in past the inlet valve, the overhead valves worked by the camshaft in the crankcase, and burnt gas pushed out towards the silencer. The same slow rotation shows the oil pump supplying lubrication and the rpm regulator at work, so the fuel, intake, exhaust and lubrication parts can be covered in one lesson.
What to Specify When Ordering
- Quantity — the number of single cylinder petrol cut models to be ordered.
Frequently Asked Questions
What size of engine is sectioned?
A single cylinder four stroke petrol engine of 160cc displacement, with a power of 6 hp, fitted with overhead valves and with its camshaft in the crankcase.
Which fuel and exhaust parts are included?
The model includes the carburettor, air filter and tank on the fuel and intake side and the silencer on the exhaust side, along with the oil pump and rpm regulator.
Is it motorised?
No, it is turned by hand with a crank handle, so the moving parts can be taken slowly through each stroke during a demonstration.
Why begin engine lessons with a single cylinder?
With a single piston and a single set of valves, each of the four strokes can be followed on its own, without the overlap between cylinders seen in multi-cylinder engines.
What does it weigh and measure?
The model is laid out on a base, measures approx. 480 × 480 × 500 mm and weighs about 35 kg.
OEM Manufacturer
The Cut Model of Single Cylinder Four Stroke Petrol Engine is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests automobile engineering cut-section models, working models and trainers for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
