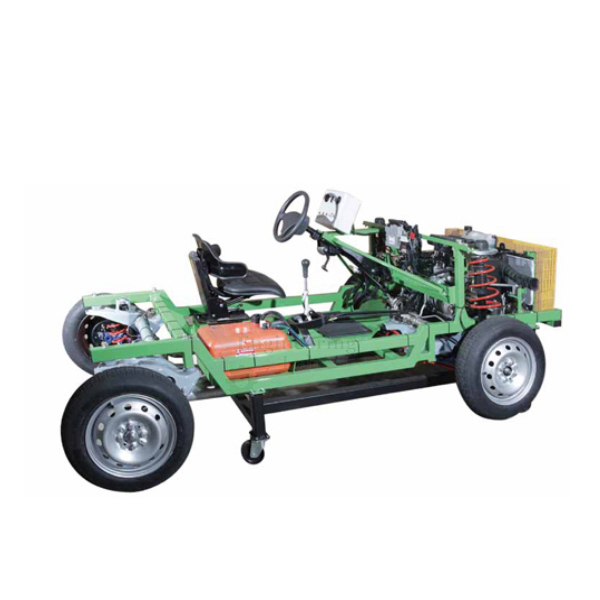

Fully Functional Cut Section Model of Chassis
Product Code : EL-AELE-10732
Quick Answer: The Fully Functional Cut Section Model of Chassis is a chassis trainer built from a medium displacement vehicle, useful for studying the main components, repair operations, and diagnostics via the OBD socket. All mechanical parts, including the engine, gearbox, clutch, brakes, lubricating circuit, cooling system, injection, ignition, suspensions, electric system, and exhaust, are completely functional and assembled on a chassis that allows easy display and the assembly and disassembly of each part.
The chassis trainer is realized from a medium displacement vehicle, which is particularly useful for the study of the main components, the repair operations, and the diagnostics, by means of the OBD socket. All the mechanical parts are carefully revised and assembled on a chassis. This chassis allows easy display and the possibility of assembling and disassembling each part. The engine, gearbox, clutch, brakes, lubricating circuit, cooling system, injection, ignition, suspensions, electric system, exhaust, etc. are completely functional.
A suitable imported colour painting is carried out along with a Miracle coating for extra gloss and shine. The painting is carried out in such a way that different colors are used for different components, such as identification of the sectioned area, according to a colour code for easy identification of different systems and mechanisms. The model is mounted onto a tubular frame, and all the hardware and gears are suitably electroplated.
FEATURES:
Operated: motorized
Equipment Layout: On stand with wheels
Fine finish
Simple operations
Functional accuracy
SPECIFICATIONS:
4 cylinder 4 stroke Petrol Engine
Displacement: 1242 cc
Multipoint electronic injection
Electronic ignition
Gearbox: 5 forward gears and reverse
Front wheel drive
Catalytic silencer
Electric fuel pump
Depression servo-brake
Front disc brakes
Rear drum brakes
Tank
Battery
Radiator with electric fan
Dashboard
Diagnostic socket
McPherson front suspension
Independent wheels rear suspension with oscillating arms
Hand brake
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 3200 x 1400x 1400mm
Weight (approx.): 380KG
