Scotch Yoko Mechanism
Product Code : EL-DOMLE-10777
Quick Answer:

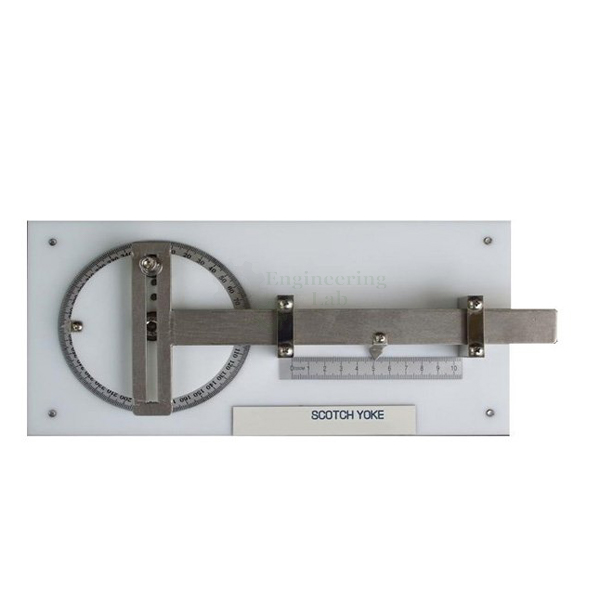

The Scotch Yoko (Yoke) Mechanism trainer is a hand-cranked slider-crank apparatus that demonstrates the relative motion between a rotating crank (measured in degrees) and a translating yoke (measured in millimetres). As an example of a slotted-link, reciprocating mechanism, it converts the crank’s rotary motion into the alternating linear motion of a piston – and, being reversible, can equally convert linear slider motion back into rotation – via a sliding yoke whose slot engages a pin on the rotating part.
The Educational Scotch Yoko Mechanism demonstrates the relative motion between a crank rotating in degrees and a yoke translating in millimetres. This unit is an example of a slider-crank mechanism, for converting the linear motion of a slider into rotational motion or vice versa; the rotating motion of the crank generates the alternating linear motion of the piston. The Scotch yoke, also known as a slotted link mechanism, is a reciprocating motion mechanism that converts the linear motion of a slider into rotational motion, or vice versa, with the piston or other reciprocating part directly coupled to a sliding yoke whose slot engages a pin on the rotating part. It is a reversible system.
FEATURES:
Operated: Manually (Through a Crank Handle)
Equipment Layout: On Base
Fine finish
Functional accuracy
Simple operations
SPECIFICATION:
The properly constructed model is hand operated.
Sturdiness
Corrosion-resistance
Enhanced durability
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 500 x 300 x 200 mm
Weight: 7kg
