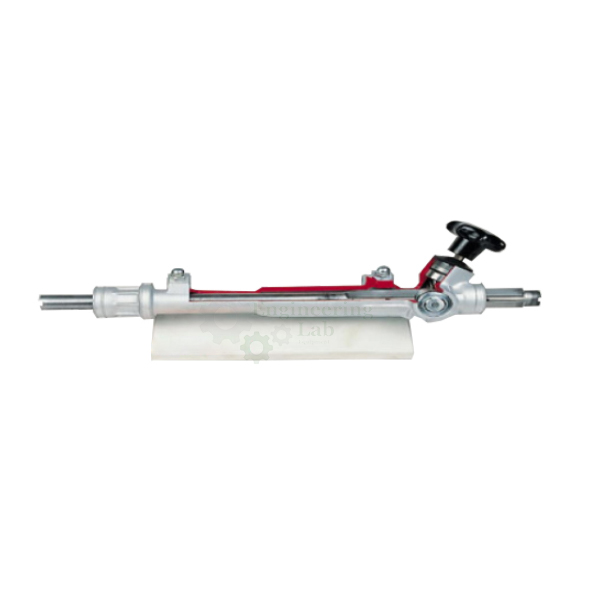

Rack and Pinion Gear Trainer
Product Code : EL-DOMLE-10776
Quick Answer:
The Rack and Pinion Gear Trainer is a hand-cranked, sectioned cutaway model that shows the internal construction of a rack-and-pinion mechanism for training purposes. Mounted on a tubular frame, it is professionally painted in different colours (with a Miracle-coated finish for extra gloss and shine) so that each component and cross-section is colour-coded for easy identification, while chromium-plated, galvanized and electroplated parts and gears give it a long service life.
The cutaway model is carefully sectioned for training purposes and professionally painted with different colours to better differentiate the various parts and cross-sections. It is mounted on a tubular frame, with suitable imported colour painting and Miracle coating applied for extra gloss and shine; the painting is carried out so that different colours are used for different components, such as identifying sectioned areas, according to a colour code for easy identification of the different systems and mechanisms. Many parts have been chromium-plated and galvanized for a longer life, and all the hardware and gears are suitably electroplated.
FEATURES:
Operated: Manually (Through a Crank Handle)
Equipment Layout: On Base
Fine finish
Simple operations
Functional accuracy
SPECIFICATION:
The properly constructed model is hand operated.
Sturdiness
Corrosion-resistance
Enhanced durability
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 1000 x 300 x 350 mm
Weight (approx.): 15kg
