Digital Corollis Component of Acceleration Apparatus Manufacturer,Supplier and Exporter in India
Product Code : EL-DOMLE-10771
Engineering Lab Equipments is a leading Digital Corollis Component of Acceleration Apparatus Manufacturer,and suppliers in India, Digital Corollis Component of Acceleration Apparatus Manufacturer,and suppliers in South Africa.Digital Corollis Component of Acceleration Apparatus Suppliers in Mozambique,Digital Corollis Component of Acceleration Apparatus A quality product from Engineering Lab Equipments ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.
When a mass moves relative to the reference system within a rotating reference system, this movement is deflected.
This deflection is caused by the Coriolis force, an apparent or inertial force.
The Coriolis force plays a crucial role in meteorology and physical oceanography, since it influences the course of air and water currents due to the Earth’s rotation.
In engineering, the Coriolis force occurs when a rotational motion interferes with a further movement of the same object.
This can occur for example in cranes, gearboxes or robots.
The experimental unit is designed to clearly demonstrate the effect of the Coriolis force in a rotating reference system.

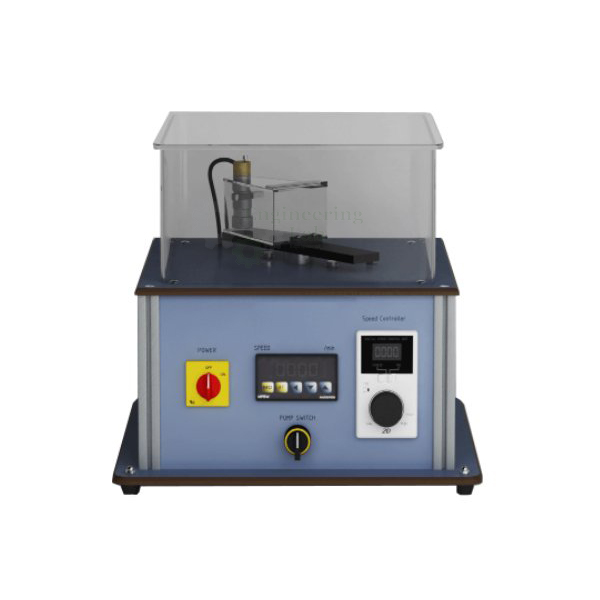

A transparent water tank with submersible pump is placed on a rotatable arm and then rotated.
Within the rotating reference system, the pump produces a water jet in a radial direction.
Depending on the flow rate of the pump or the water velocity, as well as speed and direction of rotation, the water jet is visibly deflected due to the Coriolis force.
The degree of deflection can be determined by means of a scale on the water tank.
The speed is continuously adjustable, electronically controlled and digitally displayed.
FEATURES:
Inertial or apparent force
Interference of a rotational movement on a translational movement
Visualization of the Coriolis force effect
Visualization of the Coriolis force effect
Rotating reference system
Water jet as moving mass
SPECIFICATION:
Rotating reference frame consisting of transparent water tank with submersible pump on a rotating arm
Scale to read the deflection of the water jet
Closed water circuit
Speed sensor with digital display
Rotating arm Continuously adjustable speed: 0…60min-1
Submersible pump :
Flow rate: 10L/min
Required for operation :
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase; 120V, 60Hz, 1 phase
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 800 x 600 x 1000 mm
Weight: 85kg
