Cam Analysis Apparatus

Product Code : EL-DOMLE-10768
Engineering Labs Equipment is a leading Cam Analysis Apparatus Manufacturer,and suppliers in India, Cam Analysis Apparatus Uruguay (Montevideo), Cam Analysis Apparatus Uzbekistan (Tashkent), Cam Analysis Apparatus Venezuela (Caracas), Cam Analysis Apparatus Vietnam (Hanoi), Cam Analysis Apparatus Yemen (Sana'a), Cam Analysis Apparatus Zambia (Lusaka), Zimbabwe (Harare), Eswatini (Mbabane) (Lobamba), Ethiopia (Addis Ababa), Fiji (Suva), Gabon (Libreville), Gambia (Banjul), Georgia (Tbilisi), Ghana (Accra), India (Delhi, Mumbai, Kolkatta, Chennai), Indonesia (Jakarta), Iraq (Baghdad), Ivory Coast (Yamoussoukro), Jamaica (Kingston), Jordan (Amman), Kazakhstan (Astana), Kenya (Nairobi), Kiribati (Tarawa), Kosovo (Pristina), Kuwait (Kuwait City), Kyrgyzstan (Bishkek), Laos (Vientiane), Latvia (Riga), Lebanon (Beirut), Lesotho (Maseru), Liberia (Monrovia), Libya (Tripoli), Lithuania (Vilnuis), Luxembourg (Luxembourg), Malawi (Lilongwe), Malaysia (Federal Territory of Kuala Lumpur), Maldives (Malle), Mali (Federal Territory of Kuala Lumpur), Malta (Male), Mauritania (Nouakchott), Mauritius (Port Louis), Mexico (Mexico City), Mongolia (Ulaanbaatar), Bulgaria (Sofia), Burkina Faso (Ouagadougou), Burundi (Gitega), Cambodia (Phnom Penh), Cameroon (Yaoundé), Cape Verde (Praia), Central African Republic (Bangui), Chad (N'Djamena), Chile (Santiago), Colombia (Bogota), Comoros (Moroni), Congo (Kinshasa), Costa Rica (San José), Croatia (Zagreb), Cuba (Havana), Cyprus (Nicosia), Czech Republic (Prague), Denmark (Copenhagen) ,Djibouti (Djibouti City), Dominican Republic (Santo Domingo), DR Congo (Kinshasa), Ecuador (Quito), Egypt (Cairo), El Salvador (San Salvador), Equatorial Guinea (Malabo), Eritrea (Asmara), Estonia (Tallinn)

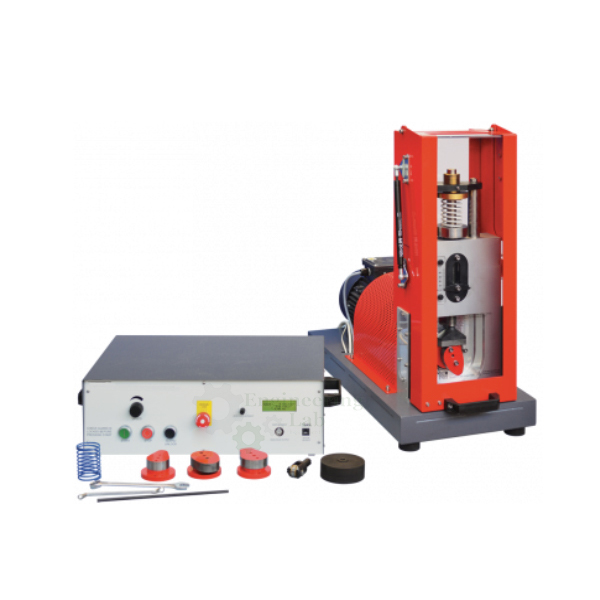

A comprehensive machine that allows students to study cams and followers.
It shows how they convert rotary to linear motion, and helps students understand their limits of use before the onset of ‘bounce’.
It also introduces students to key topics of cam terminology such as ‘nose’, ‘flank’ and ‘dwell’.
The main part of the product has a precision-machined heavy steel base, which holds a high-torque direct-drive variable-speed motor.
The motor shaft connects through a coupling to the main shaft, which then passes into the cam test area.
Self-aligning heavy-duty bearings support the shaft, which has a substantial flywheel.
The flywheel reduces speed variations as the torque demand changes during the cam rotation cycle.
The cam under test fits to the end of the main shaft, accurately mounted both axially and radially to ensure repeatability.
The follower fits to the bottom of a vertical shaft running in low-friction linear bearings.
Include a tool for easy changeover of a choice of two followers.
Students may also fit one of a choice of two compression springs and adjust their preload.
These add to the mass of the follower and vertical shaft pushing the follower onto the cam face.
Students may also add different masses (included) to alter the mass of the follower and thus the force applied to the cam.
The selection of springs, followers and cams allow for a wide range of investigations.
Sensors on the main and vertical shafts measure angular position of the cam and vertical position of the follower (displacement or ‘cam lift’).

How spring rate, preload and follower mass affect cam bounce speed.
Comparing actual results with theory for profile les of follower displacement, acceleration and velocity.
Cam bounce speeds for different cam and follower combinations, and comparison of speeds to those predicted by simplified theory.

Masses and springs :
Five x 400 g masses and 2 compression springs

Cams :
2 convex (of different shape),
1 concave,
1 tangent

Followers :
1 roller, 1 flat face

Required for Operation :
230V, 50/60Hz, 1 phase, 120V, 60Hz/CSA, 1 phase

L x W x H (approx.): 750 x 500 x 700 mm
Weight: 85kg
