Universal Vibration Apparatus Manufacturer,Supplier and Exporter in India
Product Code : EL-DOMLE-10780
Engineering Lab Equipments is a leading Universal Vibration Apparatus Manufacturer,and suppliers in India, Universal Vibration Apparatus Manufacturer,and suppliers in South Africa.Universal Vibration Apparatus Suppliers in Mozambique,Universal Vibration Apparatus A quality product from Engineering Lab Equipments ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

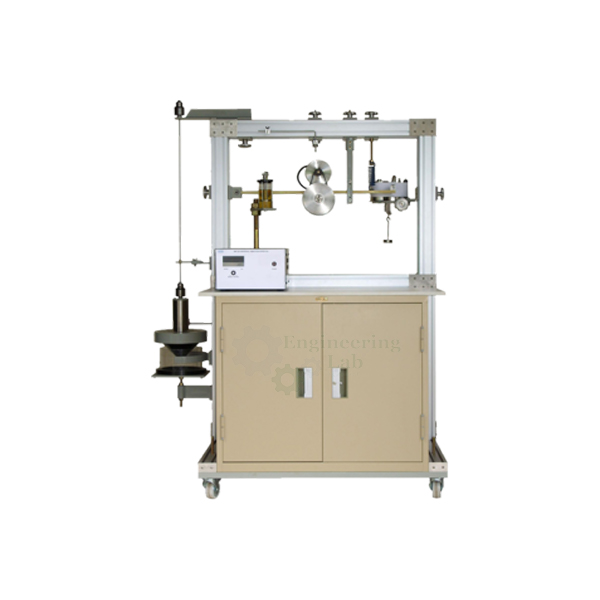

The Universal vibration trainer can be used to study many topics from the field of vibration theory through experimentation.
The topics range from simple pendulum swinging forced vibrations with resonance to vibration absorption.
The central element of the vibration trainer is a sturdy profile frame, to which the different experimental setups are easily attached.
The extensive accessories are housed in a mobile laboratory table with drawers.
In addition to free vibrations, forced vibrations can also be represented by means of an electric motor imbalance exciter.
The excitation frequency is set and displayed on a control unit.
An oil damper allows the study of damped vibrations with adjustable damping ratios.
Vibration absorbing is demonstrated with a tunable bending oscillator.
A mechanical drum and a polar chart recorder make it possible to record vibrations.
The measured values can be displayed and analyzed on a PC using the optional unit for data acquisition
FEATURES:
Detailed, wide-ranging series of experiments on the mechanical vibration theory
Damping, resonance and absorber effects in forced vibrations
Experiments on various pendulums, bar-type oscillators and spring-mass systems
SPECIFICATION:
Beam, elastic: LxWxH: 700x25x4mm, 0,6kg
Beam, rigid: LxWxH: 700x25x12mm, 1,6kg
Tension-pressure springs :
0,75N/mm
1,5N/mm
3,0N/mm
Imbalance exciter :
0…50Hz
100cmg
Oil damper: 5…15Ns/m
Absorber :
Leaf spring: WxH: 20×1, 5mm
Total mass: approx. 1,1kg
Tunable: 5…50Hz
Drum recorder: 20mm/s, width 100mm
Polar chart recorder: Ø 100mm
Required for operation :
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase; 120V, 60Hz, 1 phase
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 1200 x 600 x 1400 mm
Weight: 120kg
Contact ELE for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned engineering lab equipments exporters, engineering lab equipments manufacturers in india, engineering educational equipment manufacturer, mechanical engineering lab equipments suppliers, engineering lab equipments supplier, engineering educational equipment supplier in Ambala, India.
