Journal Bearing Apparatus

Product Code : EL-DOMLE-10774
Engineering Lab Equipments is a leading Journal Bearing Apparatus Manufacturer,and suppliers in India, Journal Bearing Apparatus Manufacturer,and suppliers in South Africa.Journal Bearing Apparatus Suppliers in Mozambique,Journal Bearing Apparatus A quality product from Engineering Lab Equipments ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

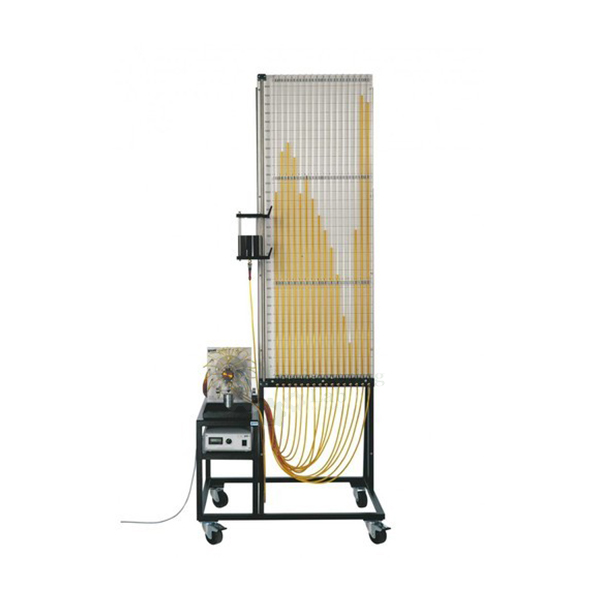

The experimental journal bearing apparatus for investigating the distribution of pressure in slide bearings illustrates the principle of hydrodynamic lubrication.
The sliding bearing consists of a bearing journal driven by an electrical motor and the freely moving bearing housing.
The distribution of pressure and the carrying capacity can be determined on a sliding bearing model at different bearing loads and speeds.
The bearing is loaded with different, interchangeable weights.
In order to view the shifting of the bearing journal in operation as clearly as possible, the model has a large gap and a transparent housing.
Both the radial and axial distribution of pressure can be recorded in the bearing gap at 12 measuring points around its perimeter and four along the length.
The measurements are shown by means of 16 tube manometers mounted on a board.
The system is mounted on a rolling support and is well suited for demonstration as well as for use in laboratory experiments.

FEATURES:
Equipment Layout: On Base
Fine finish
Operated: Manually (Through a Crank Handle)
Simple operations
Functional accuracy

SPECIFICATIONS:
Displacement 210 cc
Power 4 hp Direct Injection
Camshaft in the Crankcase
Injection Pump
Injector
Overhead Camshafts
RPM Regulator
Toroidal Oil Pump
Silencer

DIMENSIONS AND WEIGHT:
L x W x H (approx.): 500 x 500x 600mm
Weight (approx.): 45kg
