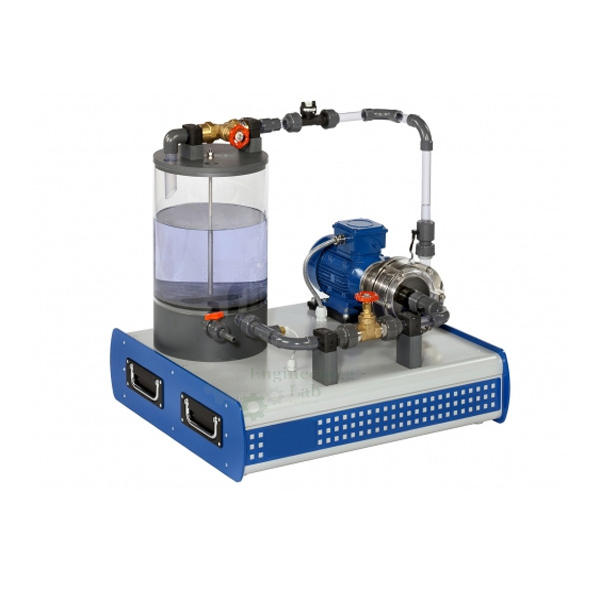

Centrifugal Pump Test Bed
Product Code : EL-FMLE-10652
QUICK ANSWER: The Centrifugal Pump Test Bed is a self-contained apparatus used to study a centrifugal pump and record its typical characteristic curve, built around a self-priming centrifugal pump with a ball valve on the outlet side and manometers on the inlet and outlet sides; a vacuum gauge on the suction line and a pressure gauge on the delivery line indicate pressure, while flow rate is measured volumetrically using a measuring tank and stopwatch. An asynchronous motor drives the pump with speed infinitely adjustable via a frequency converter, and a ball valve is used to adjust the head, allowing the pump characteristics, power and efficiency curves to be recorded at different speeds.
The Advanced Centrifugal Pump Test Rig is a self-contained unit operated on a closed circuit basis containing a sump tank. The set-up consists of a Centrifugal pump coupled with a DC Motor. Power input to the DC Motor is varied by means of a Thruster controlled DC Drive to vary the RPM of the motor, and an RPM Indicator with a Proximity sensor indicates the RPM of the Pump. Flow of water is measured using a measuring tank and stopwatch, with a Vacuum gauge fitted on the suction line and a Pressure gauge fitted on the delivery line to measure the pressure.
Centrifugal pumps are turbo machines used for conveying fluids, and the unit can be used to study a centrifugal pump and to record a typical pump characteristic curve. The experimental unit includes a self-priming centrifugal pump, a ball valve on the outlet side and manometers on the inlet and outlet sides, driven by an asynchronous motor whose speed is infinitely adjustable using a frequency converter; a ball valve is used to adjust the head. The experimental unit is positioned easily and securely on the work surface; the pump draws in water from the tank, and the flow rate is determined volumetrically by measuring the water flowing back into the measuring tank.
FEATURES:
Characteristic curve of a centrifugal pump
Investigation of a centrifugal pump
Drive with variable speed via frequency converter
Determining the flow rate
Recording the pump characteristics for different speeds
Power and efficiency curves
Measuring the electrical drive power
Ball valve to adjust the head
Manometers on the inlet and outlet side of the pump
Digital display of speed and power
Measuring the inlet and outlet pressure
Determining the hydraulic power
Calculating the efficiency
SPECIFICATION:
Centrifugal pump, self-priming
Max. Flow rate: 3000L/h
Max. Head: 36,9m
Asynchronous motor:
Nominal power: 370W
Measuring ranges:
Pressure (outlet side): -1…5bar
Pressure (inlet side): -1…1,5bar
Speed: 0…3000min-1
Power: 0…1000W
230V, 50Hz, 1 phase
DIMENSIONS AND WEIGHT:
L x W x H: 900 x 550 x 600 mm
Weight: 90kg
