Orifice and Venturi Meter Demonstration Manufacturer,Supplier and Exporter in India
Product Code : EL-FMLE-10670
Engineering Labs Equipment is a leading Orifice and Venturi Meter Demonstration Manufacturer,and suppliers in India, Orifice and Venturi Meter Demonstration Uruguay (Montevideo), Orifice and Venturi Meter Demonstration Uzbekistan (Tashkent), Orifice and Venturi Meter Demonstration Venezuela (Caracas), Orifice and Venturi Meter Demonstration Vietnam (Hanoi), Orifice and Venturi Meter Demonstration Yemen (Sana'a), Orifice and Venturi Meter Demonstration Zambia (Lusaka), Zimbabwe (Harare), Eswatini (Mbabane) (Lobamba), Ethiopia (Addis Ababa), Fiji (Suva), Gabon (Libreville), Gambia (Banjul), Georgia (Tbilisi), Ghana (Accra), India (Delhi, Mumbai, Kolkatta, Chennai), Indonesia (Jakarta), Iraq (Baghdad), Ivory Coast (Yamoussoukro), Jamaica (Kingston), Jordan (Amman), Kazakhstan (Astana), Kenya (Nairobi), Kiribati (Tarawa), Kosovo (Pristina), Kuwait (Kuwait City), Kyrgyzstan (Bishkek), Laos (Vientiane), Latvia (Riga), Lebanon (Beirut), Lesotho (Maseru), Liberia (Monrovia), Libya (Tripoli), Lithuania (Vilnuis), Luxembourg (Luxembourg), Malawi (Lilongwe), Malaysia (Federal Territory of Kuala Lumpur), Maldives (Malle), Mali (Federal Territory of Kuala Lumpur), Malta (Male), Mauritania (Nouakchott), Mauritius (Port Louis), Mexico (Mexico City), Mongolia (Ulaanbaatar), Bulgaria (Sofia), Burkina Faso (Ouagadougou), Burundi (Gitega), Cambodia (Phnom Penh), Cameroon (Yaoundé), Cape Verde (Praia), Central African Republic (Bangui), Chad (N'Djamena), Chile (Santiago), Colombia (Bogota), Comoros (Moroni), Congo (Kinshasa), Costa Rica (San José), Croatia (Zagreb), Cuba (Havana), Cyprus (Nicosia), Czech Republic (Prague), Denmark (Copenhagen) ,Djibouti (Djibouti City), Dominican Republic (Santo Domingo), DR Congo (Kinshasa), Ecuador (Quito), Egypt (Cairo), El Salvador (San Salvador), Equatorial Guinea (Malabo), Eritrea (Asmara), Estonia (Tallinn)

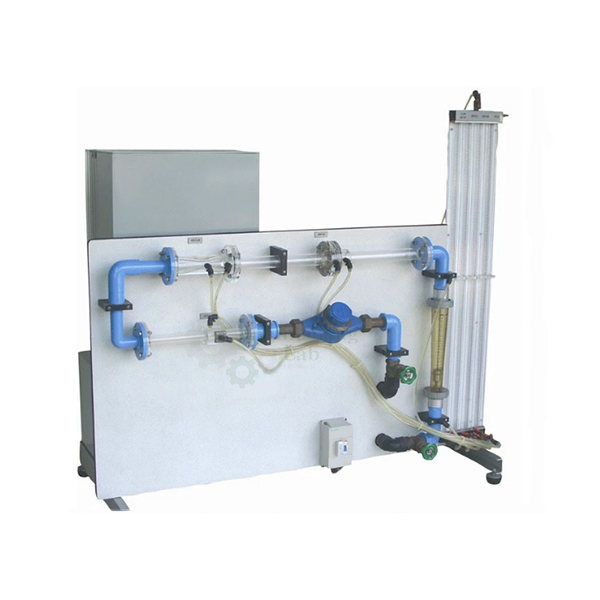

The equipment consists of a Venturi meter, variable area meter and orifice plate, installed in a series configuration to permit direct comparison.
A flow control valve permits variation of the flow rate through the circuit.
Pressure tappings are incorporated so that the head loss characteristics of each flow meter may be measured.
These tapping’s are connected to an eight-tube manometer bank incorporating a manifold with an air bleed valve.
A hand pump facilitates pressurization of the manometers.
The circuit and manometer are attached to a support framework, which stands on the working top of the Hydraulics Bench.
The bench is used as the source of water supply and for volumetrically calibrating each flow meter.
This enables to adjust the levels in the manometer bank to a convenient level to suit the system static pressure.
FEATURES:
Venturi meter, variable-area meter and orifice plate with flow-control valve.
Determination of the Cd factor in the Venturi.
Determination of the strangulation in the Venturi.
Determination of the Cd factor in the orifice plate.
Determination of the error in flow measurements using the orifice plate.
Pressure tapping’s to measure head loss across each meter.
Quick-release fitting for easy connection to Hydraulics Bench.
Calibrating each flow meter using the volumetric measuring tank of the bench.
Comparing pressure drops across each device.
Directly comparing flow measurement using a Venturi meter, variable area meter and orifice plate.
Educational software available as an option.
Supplied with manometer board with eight tubes.
SPECIFICATION:
Manometer range: 0 to 500 mm. of water column.
Number of monomeric tubes: 8.
Orifice plate diameter: 25 mm.
Flow meter: 2to30 l./min.
Easy and quick coupling system built-in.
Anodized aluminum structure and panel of painted steel.
Venturi dimensions:
Throat diameter: 20 mm.
Upstream pipe diameter: 32 mm.
Downstream taper: 21°.
Upstream taper: 14°.
Orifice Plate dimensions:
Upstream pipe diameter: 35 mm.
Downstream orifice diameter: 19 mm.
DIMENSIONS AND WEIGHT:
L x W x H: 800-x600 x 600 mm
Contact ELE for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned chemical engineering lab instruments supplier, chemical engineering lab equipment supplier, engineering lab instruments exporter, civil engineering lab equipment exporter, civil engineering lab instruments supplier, civil engineering lab equipments manufacturer in Ambala, India.
