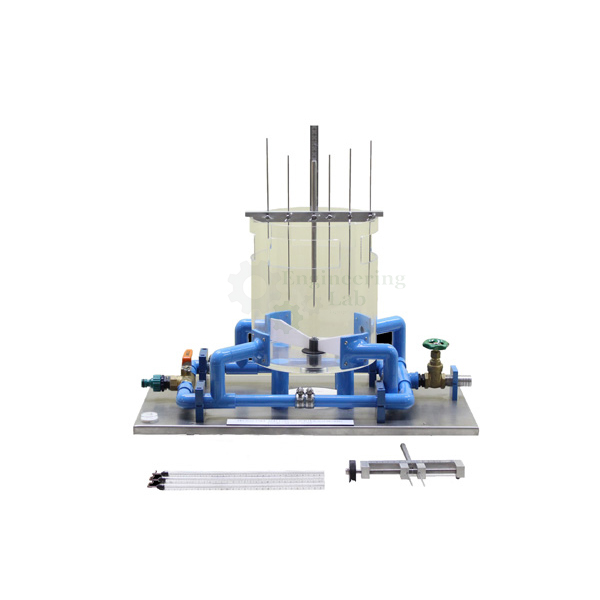

The Free and Forced Vortex Apparatus for the study of the shape of ‘free and forced vortices’ consists of a cylindrical, transparent vessel, having two pairs of diametrically opposed inlet tubes of 9.0 mm and 12.5 mm diameter.
The 12.5 mm diameter inlet tubes which are angled at 15° to he diameter, so that a swirling motion is imparted to the liquid entering the vessel, are used as entry tubes for the free vortex experiment.
A smooth outlet is centrally positioned in the base of the vessel and a set of push-in orifices of 24, 16, 12 and 8 mm diameter is supplied to reduce the outlet diameter to a suitable value.
A gauge determines the profile of the vortex formed at the top of the vessel, housed on a diametrically mounted bridge piece, which measures the diameter of the vortex at various depths.
This gives the co-ordinate points required to plot the vortex profile.
The forced vortex is created in the vessel described above by using as the inlet the 9 mm bore tubes which are angled at 60° to the diameter.
The input water from these tubes impinges on a simple two-blade paddle, which acts as a stirrer/flow straightener.
The water ‘leaves’ the vessel via the 12.5 mm diameter angled tubes, which are used as the ‘entry’ tubes for the free vortex experiment.
FEATURES:
Experiment to plot the surface profiles of various forced vortices formed under different speed conditions.
Experiment to plot the shape of a free vortex by measurement of the surface profile co-ordinates, and thus verify that v r = constant where v is the speed and r is the radius of the vortex.
Verification of the formula h=(w² r²)/2g for forced vortices where h is the height of the surface of the water above the datum point; w is the vortex angular velocity and r is the vortex radius.
SPECIFICATIONS:
Cylindrical, transparent vessel 250 mm diameter &180 mm depth,
Set of push-in orifices of 24, 16, 12 and 8 mm diameter.
Inlet tubes of 9.0 mm and 12.5 mm diameter.
DIMENSIONS AND WEIGHT:
L x W x H: 600-x600 x 800 mm
Weight: 60kg
