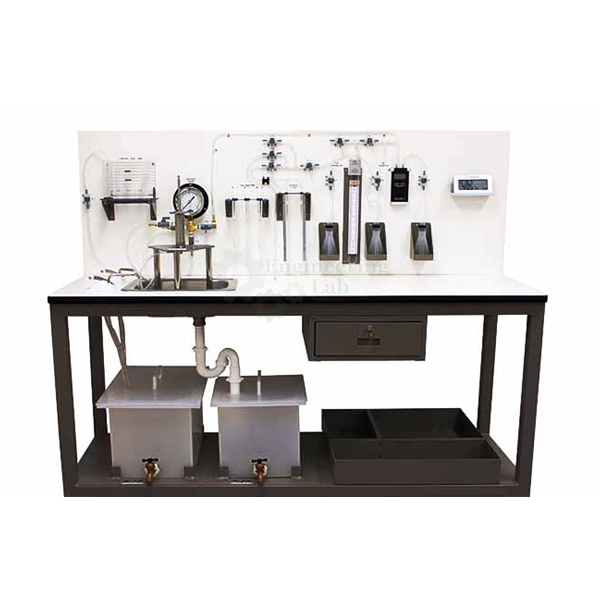

Fluid Properties and Hydrostatics Bench
Product Code : EL-FMLE-10660
QUICK ANSWER: The Fluid Properties and Hydrostatics Bench is a trolley-mounted apparatus with a demonstration panel, working area and cabinet that lets students carry out numerous experiments on the hydrostatics of liquids and gases – including surface tension, capillary effects, Pascal’s law, center of pressure, static and dynamic pressure, the Boyle-Marriott law, buoyancy (via an Archimedes module) and liquid density – using a sealed water circuit with submersible pump (0.22kW, 95 Ltr/min flow rate, 12.5m head) and supply tank that lets it run independent of a mains water connection. Measurement is performed with an aneroid barometer (973–1047 mbar), Hg U-tube and U-tube manometers, a parallel plates capillary module, three hydrometers, falling-sphere viscometer tubes and a variable-scale lever balance (up to 310 gr).
On the Fluid Properties and Hydrostatics Bench, numerous experiments on the hydrostatics of liquids and gases can be carried out. A pipe section and various pressure measuring devices, together with integrated measuring containers, are fitted to a laboratory trolley with a demonstration panel, working area and cabinet. The sealed water circuit and pump, together with a supply tank, permit experiments to be performed independent of a mains water connection, a feature that makes the bench particularly suitable for use in seminar rooms and lecture theatres. Further experimental apparatus are included in the cabinet, such as a device for determining the center of pressure of a column of water, which also enables the pressure on a weir to be determined, amongst other aspects.
FEATURES:
Familiarization with different methods of measuring pressure
Familiarization with various items of pressure measuring equipment
Determination of surface tension
Demonstration of capillary effects
Demonstration Pascal’s law
Determination of the center of pressure
Measurement of the static and dynamic pressure component in a fluid
Experiments on the Boyle-Marriott law
Determination of the buoyancy of various bodies
Investigations on the density of liquids
SPECIFICATIONS:
Submersible pump: 0.22kW
Volumetric flow rate: 95Ltr/min
Head: 12.5m
Aneroid barometer, range: 973 – 1047 mbar.
Thermometer with a range between -10 and 50oC.
Pycnometer of 50 ml.
Parallel plates capillary module.
Hg U-tube manometer 270..0..270mbar
U-Tube manometer 0..500mmWC
3 Hydrometers of resolution 0.002oSG:
Hydrometer 0.8oSG – 1oSG Hydrometer 1oSG – 1.2oSG Hydrometer 1.2oSG – 1.4oSG
Two hydrometer jars of 450 x 50 mm.
Capillary tubes module with tubes of different size: 5 mm, 4 mm, 3 mm, 2.2 mm, 1.7 mm and 1.2 mm.
Two falling sphere viscometer tubes of 300 x 40 mm, with marks at 0, 25, 175, 200 and 220.
Set of stainless steel balls of different sizes: 3.175 mm, 2.381 mm and 1.588 mm
Variable scale lever balance to be used with the Archimedes module, up to 310 gr.
Archimedes module: displacement vessel, bucket and cylinder.
Graduated cylinder made of glass (250 ml.)
2 Beakers made of glass (600 ml.)
Digital chronometer
DIMENSIONS AND WEIGHT:
L x W x H: 1000 x 800 x 1400 mm
Weight: 120kg
