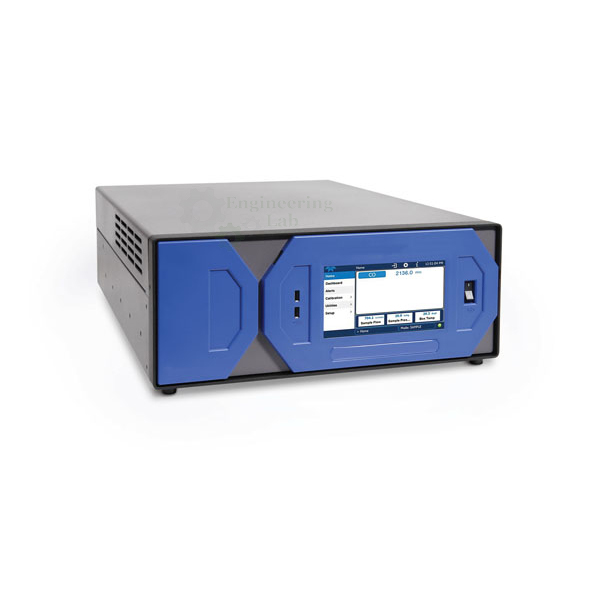

5 Gas Analyser
Product Code : EL-FTLE-10897
Quick Answer: The 5 Gas Analyser (Emission 5 Gas) diagnoses fuel control problems, misfires, leaking head gaskets, no-starts, hard starts, and EVAP system leaks, with probe-to-screen update rates as fast as 5 seconds. It takes 5 gas measurements of HC, CO, CO2, O2, and NOx, meeting or exceeding OIML Class 1 Gas Standards, measuring concentration in parts per million, percentages, or grams per mile/kilometer, and comes as a ready-to-run test solution with all necessary cables, probes, connectors, hoses, and its own power supply. It interfaces to a PC via serial port, with a large 1024x768 XGA display, cursor-hold measurement of the last 2.5 minutes, multi-tool simultaneous viewing alongside other ATS diagnostic tools, and the ability to save data as text or JPEG image or view it remotely over a LAN or the internet.
The 5 Gas Analyzer spots common problems right now, with update rates from probe to screen display as fast as 5 seconds, helping locate fuel control problems, misfires, leaking head gaskets, no starts, hard starts, and EVAP system leaks.
Emission 5 Gas is a premium gas analyzer, made of the finest materials and designed to provide many years of trouble-free service; it comes packaged as a ready-to-run test solution, with all necessary cables, probes, connectors, hoses, and its own power supply.
Review Emission 5 Gas readings as numeric data, or graph them in bold, colorful displays that make it easy to spot trends and imbalances, and increase diagnostic power by 50% with ATS’ innovative Emission software. Save data as text or image, branded with your shop name and annotated for future reference. The analyzer takes 5 gas measurements of HC, CO, CO2, O2 and NOx, meeting or exceeding OIML Class 1 Gas Standards, and measures concentration in parts per million or percentages, and supports measuring grams per mile / kilometer.
Interfaces to PC via Serial Port :
Hold Button allows Cursor Measurements of last 2.5 Minutes.
Multi Tool Tab allows Simultaneous Viewing of Emission Data along with Data from other ATS Diagnostic Tools.
Data Can be Saved to Text File for Future Retrieval.
Data Can be Saved to JPEG Image for E-mailing or Documentation.
Large 1024×768 Pixel (XGA) Viewing Area with Large Colored Traces.
Web Enabled for Remote Monitoring on LAN or Internet.
For the Emission we recommend the following:
XGA (1024×768 pixel resolution screen)
1 GHz Processor Speed (faster is better)
256 MB RAM (more is better)
500 MB Available Hard Disk Space
Windows XP through Windows 8.1 operating systems including Windows 8 and 8.1 tablets (Windows RT tablets are not supported)
Available RS-232 Serial Port or USB/RS-232 Adaptor.
