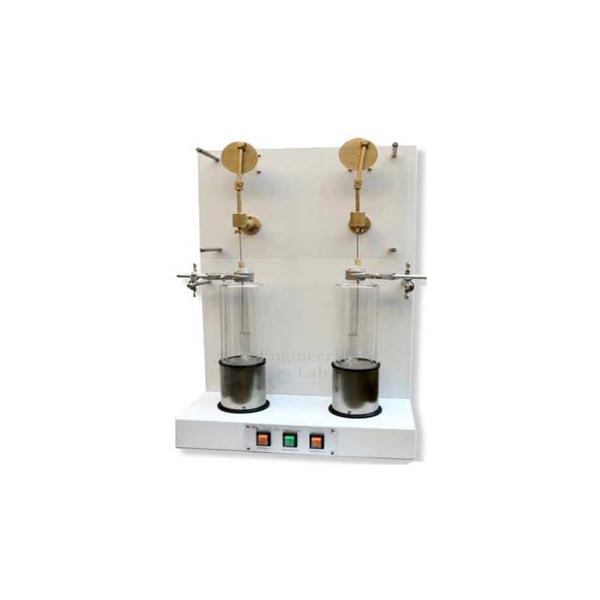

Freezing Point Apparatus
Product Code : EL-FTLE-10904
Quick Answer: The Freezing Point Apparatus determines the freezing point of aqueous engine coolant solutions by cooling a sample with continuous agitation until a plateau appears in its time-temperature curve, conforming to ASTM D1177. It uses a double tube (Ø30 x 240mm) housed in a Ø75 x 280mm Dewar jar, a geared motor stirring at 80rpm with a wire stirrer, and a digital thermometer, mounted on a plate structure painted with anti-acid epoxidic products, and operates on 120 or 230 volts, 50/60 Hz.
The electric freezing point apparatus is a manual freezing point apparatus. It determines the freezing point of aqueous engine coolant solutions by cooling a sample with continuous agitation until a plateau is observed in a time-temperature curve, conforming to ASTM D1177 specifications. It features a double tube (Ø 30 x 240 mm, fitted with a cap) housed in a Ø 75 x 280 mm Dewar jar, a geared motor for stirring at 80rpm with a wire stirrer, and a digital thermometer, all mounted on a plate structure painted with anti-acid epoxidic products.
ACCESSORIES:
ASTM-114C Thermometer ASTM 114C IP 14C
Type A Nitrogen collar made in glass
SPARE PARTS:
Double tube 30 x 240mm
Wire stirrer
Dewar jar
Cork series
Type B Modified moisture proof collar made in glass
Electrical:
Specify 120 or 230 Volts, 50/60 Hz
Standard: ASTM D1177
