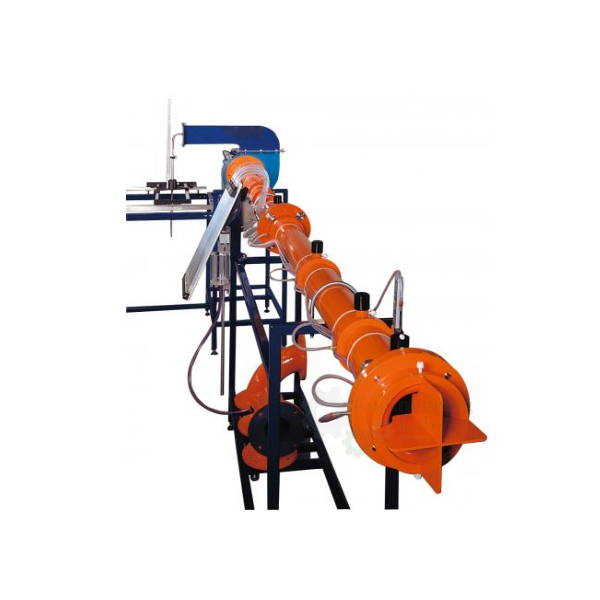

Air Blower Test Setup

Product Code : EL-TELE-10709
Engineering Labs Equipment is a leading Air Blower Test Setup Manufacturer,and suppliers in India, Air Blower Test Setup Uruguay (Montevideo), Air Blower Test Setup Uzbekistan (Tashkent), Air Blower Test Setup Venezuela (Caracas), Air Blower Test Setup Vietnam (Hanoi), Air Blower Test Setup Yemen (Sana'a), Air Blower Test Setup Zambia (Lusaka), Zimbabwe (Harare), Eswatini (Mbabane) (Lobamba), Ethiopia (Addis Ababa), Fiji (Suva), Gabon (Libreville), Gambia (Banjul), Georgia (Tbilisi), Ghana (Accra), India (Delhi, Mumbai, Kolkatta, Chennai), Indonesia (Jakarta), Iraq (Baghdad), Ivory Coast (Yamoussoukro), Jamaica (Kingston), Jordan (Amman), Kazakhstan (Astana), Kenya (Nairobi), Kiribati (Tarawa), Kosovo (Pristina), Kuwait (Kuwait City), Kyrgyzstan (Bishkek), Laos (Vientiane), Latvia (Riga), Lebanon (Beirut), Lesotho (Maseru), Liberia (Monrovia), Libya (Tripoli), Lithuania (Vilnuis), Luxembourg (Luxembourg), Malawi (Lilongwe), Malaysia (Federal Territory of Kuala Lumpur), Maldives (Malle), Mali (Federal Territory of Kuala Lumpur), Malta (Male), Mauritania (Nouakchott), Mauritius (Port Louis), Mexico (Mexico City), Mongolia (Ulaanbaatar), Bulgaria (Sofia), Burkina Faso (Ouagadougou), Burundi (Gitega), Cambodia (Phnom Penh), Cameroon (Yaoundé), Cape Verde (Praia), Central African Republic (Bangui), Chad (N'Djamena), Chile (Santiago), Colombia (Bogota), Comoros (Moroni), Congo (Kinshasa), Costa Rica (San José), Croatia (Zagreb), Cuba (Havana), Cyprus (Nicosia), Czech Republic (Prague), Denmark (Copenhagen) ,Djibouti (Djibouti City), Dominican Republic (Santo Domingo), DR Congo (Kinshasa), Ecuador (Quito), Egypt (Cairo), El Salvador (San Salvador), Equatorial Guinea (Malabo), Eritrea (Asmara), Estonia (Tallinn)

The Air Blower Test Setup experimental bench top unit for studying the air flow measurement and airflow characteristics in optional apparatus.
The set uses an industrial type centrifugal blower with inlet and outlet ducts, flow straighteners, a damper, various flow measuring devices using manometers for the study of air flow measurement according to BS 848 and 1042, ISO 5167.
Radial fans are used to transport gases with non-excessive pressure differences.
The medium is drawn in axially to the drive shaft of the radial fan and is deflected by 90° by the rotation of the rotor and discharged radially.
The experimental unit provides the basic experiments to get to know the operating behavior and the most important characteristic variables of radial fans.
Various measuring devices for the study of airflow are provided as an option.

Airflow measurement.
Bernoulli’s experiment.
Airflow drag.
Boundary layer.
Flow Visualization.
Flow around a bend.
Airflow in pipes.
Free jet study.

Inlet duct: with flow straightener.
Outlet duct: with flow straightener and damper.
Accessories: Thermometer and barometer.
Power supply: 220 V, 1 Ph, 50 Hz.

Blower ratings :
Maximum flow rate (un choked): Over 12 m3/min.
Maximum head (fully choked): Over 80 mm. water.

Measuring instruments :
Airflow rate : Venturi nozzle, orifice plate, inlet cone, and traveling pitot using inclined water manometer.
Differential pressures: Twin inclined water manometers., 0-450 mm x 1 mm graduation, multiple slope 1:10, 1:5, 1:2 and 1:1.
