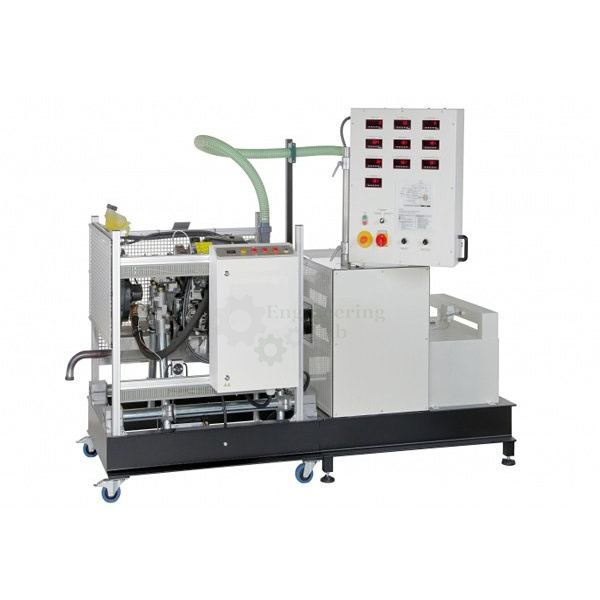

Four Stroke Four Cylinder Diesel Engines Test Bench
Product Code : EL-TELE-10697
Quick Answer: This Four Stroke Four Cylinder Diesel Engine Test Bench couples a four-cylinder diesel engine to a dedicated load unit on a solid, roller-mounted welded frame, connected via a rotationally elastic coupling with a jointed shaft. The engine carries sensors for temperature and cooling water flow rate, a switch cabinet with an ignition key, operating-time counter and warning lamps, and a frame-mounted starter battery, with data passed between the engine and load unit's switch cabinets over a data cable. For safety, hot surfaces and rotating parts are shielded with perforated plates and the engine will only start once it is connected to the load unit both mechanically and electrically.
The engine used here is a four-cylinder diesel engine with its own closed cooling water circuit, carried on a solid welded frame on rollers. Hazardous areas such as hot surfaces and rotating parts are covered with perforated plates, and the engine is attached to the load unit by fasteners, with the connection to the brake made via a rotationally elastic coupling with a jointed shaft.
The engine is fitted with sensors that measure the temperatures and the cooling water flow rate, and a switch cabinet houses all of the electronic equipment for managing the engine (factory set), carrying an ignition key, an operating time counter and warning lamps. Data is transferred between the load unit and the engine via a data cable connecting the switch cabinets for the two units, and a starter battery is also housed in the frame. For safety reasons, the engine has been modified so that it only starts when it is connected to the load unit both mechanically and electrically.
FEATURES:
Engine flexibly mounted on mobile frame
Plotting of torque and power curves
Overall engine efficiency
Closed cooling water circuit
Determination of specific fuel consumption
Determination of volumetric efficiency and lambda (fuel-air ratio)
Energy balances
Switch cabinet with warning lamps (oil pressure, alternator failure), operating time counter and ignition key
SPECIFICATIONS:
Max. Power: 74 BHP @ 4000 rpm
Max. Torqe: 190Nm @ 2000 rpm
Fuel: diesel
Starting: Self-start
Working stroke: Four strokes
Cooling: Water-cooled
No of cylinders: Four
Bore: 69.9 mm
Stroke length: 82 mm
Capacity: 1248 cc
Battery: 12V, 45A
Alternator: 12V, 45A
Power required: 230V, 50Hz, 1 phase
DIMENSIONS AND WEIGHT:
L x W x H: 1200x 1000x 1200mm
Weight (approx.): 410kg
