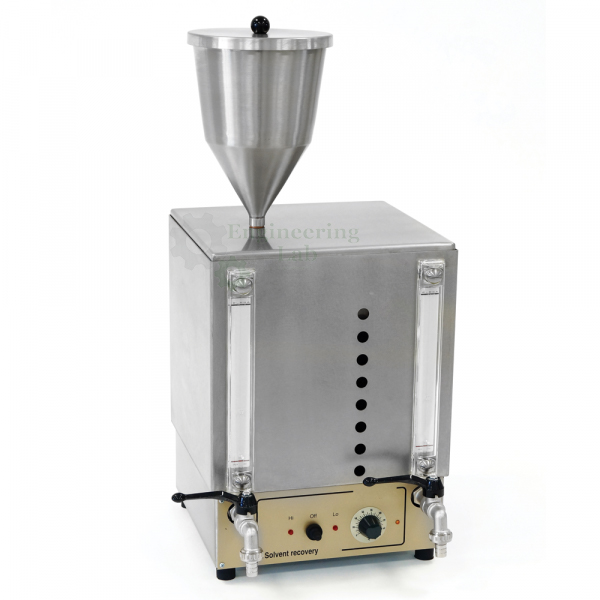

Solvent Recovery Unit

Solvent Recovery Unit

Product Code : EL-BTLE-10436

Quick Answer: The Solvent Recovery Unit is designed to recover non-flammable solvents used in extraction tests, consisting of two stainless steel chambers – one for dirty solvent and one for the cleaned, reusable solvent. An electric heater in the left-hand chamber distils the solvent, which passes through a water cooling system into the second chamber for re-use, with a temperature switch automatically stopping the heating elements once the process is complete. It operates at temperatures up to 150°C on a 1200 W supply, and is supplied complete with a 10 m plastic tube, tube clamps, a sieve insert with a 0.6 mm opening and one lid.

This unit has been designed to recover non-flammable solvents, and is used to recover the solvent liquid after its use for extraction tests; it consists of two stainless steel chambers, one for dirty solvent and the other for the cleaned solvent. An electric heater in the left-hand chamber distils the solvent, which then passes through a water cooling system and drops into the second chamber ready for re-use in a new test, and once the process is completed, a temperature switch automatically stops the heating elements. It is supplied complete with 10 m plastic tube, tube clamps, sieve insert 0.6 mm opening and one lid.

Technical Specifications :
Max. temperature: 150°C
Power: 1200 W
Overall dimensions: 400x320x650 mm
Weight approx.: 17 kg

Standards: General

For this and other bitumen and asphalt testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.

Last Updated: September 2026

Related Products: Centrifuge Extractor – Motorized, Reflux Extractor 4000 Gms, Dean and Stark Apparatus, Centrifuge Extractor Hand Operated
