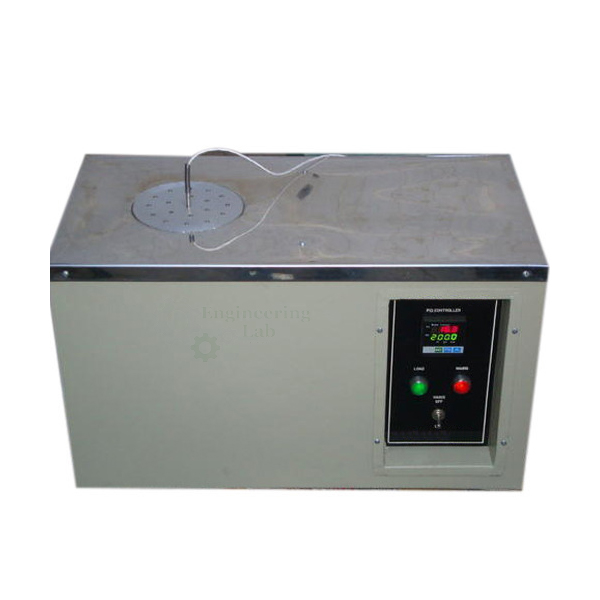

Thermal Stability Test Apparatus

Thermal Stability Test Apparatus

Product Code : EL-LEAA-11001

Quick Answer: This Thermal Stability Test Apparatus is a double-walled unit used for PVC/rubber cable testing, with a microprocessor-based PID temperature controller cum indicator, ceramic-blanket insulation to minimize heat loss, and a solid round aluminum block (with holes sized for thermal tubes per IS standard) heated by a Kanthal strip heater for uniform temperature. It has a temperature range of ambient to 210.1°C with +-1°C accuracy, a 350W heater, a CRC/mild steel powder-coated housing, and runs on single-phase 220/230V AC power.

SpecificationDetails
Microprocessor based PID Controller Temperature cum indicator to give better accuracy.
Avoid heat loss and gives better results Better Cera blanket Insulated to give minimum heat loss.
PVC Rubber Testing Double walled useful for cable.
Solid round shape block Aluminum having number of hole for Thermal tubes as per IS
Strip type Kanthal heater to give uniform Temperature
Steeliness Steel 304 grade having provision for holes for different tubes
Unique handle arrangement to carry equipment during Test.
Technical Parameters
Temperature RangeAmbient to 210.1°C, working to 210.1°C continuous
Temperature Accuracy±1°C or better
Digital Setting1°C
Housing MaterialCRC Powder Coated with Mild Steel
InteriorAlum. Block
Duty CycleContinuous
Power ConsumptionSingle Phase AC Supply 220/230V AC Supply +_ 10% 50Hz
Interior (mm)Heavy Duty Aluminum Block
Heater Watts350 W

For this and other laboratory equipment and accessories, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
