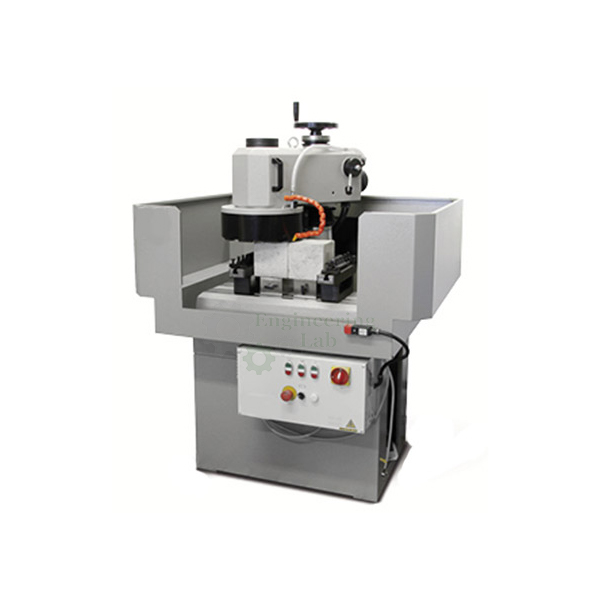

Core Cutting Grinding Machine

Core Cutting Grinding Machine

Product Code : EL-RTLE-10501

Quick Answer: The Core Cutting Grinding Machine is a table-mounted unit designed for cutting and grinding cylindrical rock specimens up to NX size, fitted with a 200 mm dia diamond impregnated cutter, a fine diamond impregnated grinding wheel, a water supply system and a sampler holder. It includes a V-Vice that holds samples up to 55 mm dia x 140 mm long square to the longitudinal axis, a hand feed arrangement for uniform, smooth feeding, and cooling water arrangement, and is powered by a 3 HP, three-phase, 440V A.C. motor.

This unit is designed for cutting and grinding cylindrical rock specimens up to NX size, with an outfit that includes a 200mm dia diamond impregnated cutter, a fine diamond impregnated grinding wheel, a water supply system and sampler holder. Cores longer than 140mm can be prepared by reversing the specimen and holding against the vice. A hand feed arrangement is provided to facilitate the specimen with a uniform and smooth feeding motion. A V-Vice, to hold the sample up to 55mm dia x 140mm long to be cut parallel and square to the longitudinal axis, is provided. This unit is provided with a 3 HP, Three Phase, 440 V A.C. Motor.

Specification:
Table Mounted
Stable Construction
Feed arrangement for cutting
Cooling water arrangement

For this and other rock testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.

Last Updated: September 2026
