Groove Cutter Machine

Groove Cutter Machine

Product Code : EL-RTLE-10957

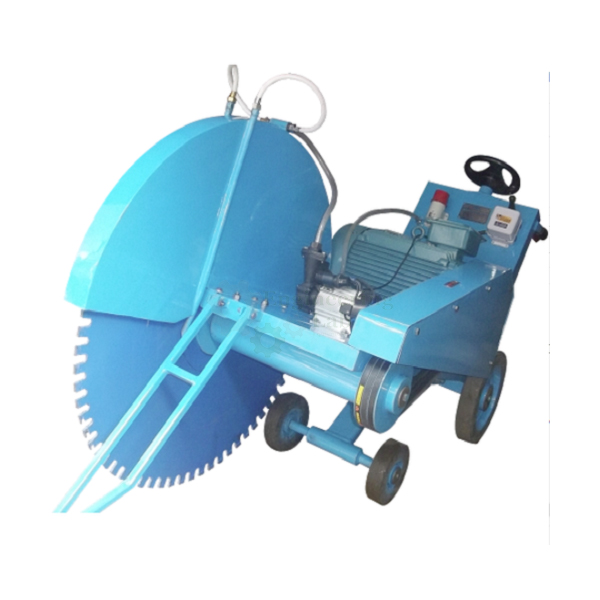

Quick Answer: The Groove Cutter Machine is an electric cutting machine used in the rock testing lab to cut grooves up to 300 mm deep and 6 mm wide. It uses a 900 mm/36 inches diamond blade driven by a 20 HP electric prime motor.

The machine is supplied with an electrical panel board and a wire lead with plug socket for connection to the power supply. A minimum water supply of 18 Ltr/Min is required, so a water connection is needed at the place of use, and the machine weighs approx. 390 kgs.

Technical Details
With Electrical Panel Board
Wire lead with plug socket
Weight (Approx.)390 kgs
Minimum Water18 Ltr/Min
Maximum Depth cut300 mm
Width Of Cut6 mm
Prime MotorElectric Motor
Power Rating20 HP
Diamond Blade900 mm/36 inches

For this and other rock testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.

Last Updated: October 2026

Related Products: Asphalt & Concrete Floor Saw, Core Cutting/Core Drilling Machine (Motorized), Polishing and Lapping Machine, Point Load Index Tester
