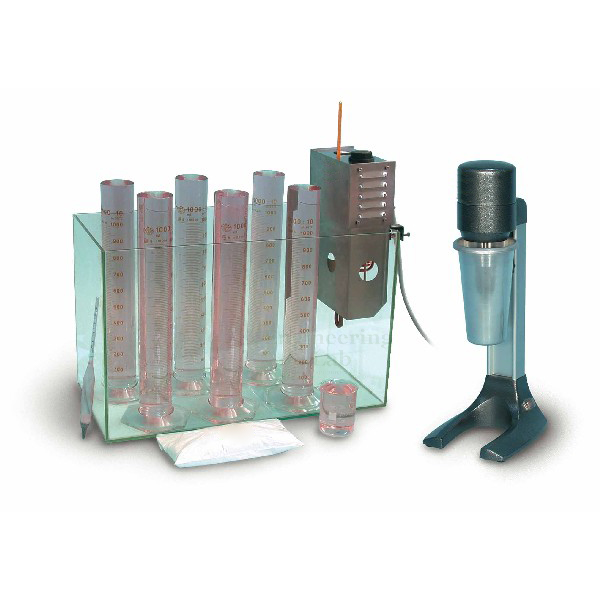

Particle Size Analysis Set, Hydrometer Method

Particle Size Analysis Set, Hydrometer Method

Product Code : EL-STLE-10403

This equipment is used to determine the quantitative size distribution of very fine particle in soils such as clay and silt.

The complete set comprises:
Sedimentation Cylinder, 1000 ml capacity (6pieces) with rubber bungs.
Soil Hydrometer, 151H, range 0.995 to 1.038g/ml with div. 0.001.
Glass Tank, dimensions: 600x300x380 mm
Glass Thermometer, range -10 to 50° C., Sub-div. 0.5° C.
Beaker, Borosilicate Glass, 250 ml capacity
Heater complete with thermostat, circulation unit. 230V Single Phase 50Hz 1000W
Sodium Hexametaphosphate, 1000 g
High Speed Stirrer, 4000 R.P.M, complete with baffle cup, for dispersing soilparticles in water

Standards: ASTM D 422 AASHTO T 88, BS 1377-2.
