Refrigeration Assembly and Maintenance Accessories
Product Code : EL-RAACLE-10794
Quick Answer:
The Refrigeration Assembly and Maintenance Accessories trainer is a hands-on refrigeration system that lets trainees learn complete assembly, installation, and maintenance of a working refrigeration circuit, from pipework and switch wiring through commissioning and testing. Mounted on a workbench with a refrigeration chamber, an aluminum assembly panel, and a drawer for storing components and tools, it demonstrates the planning, installation, electro-technical wiring, and functional checking involved in building a refrigeration system from individual components.
Overview:
This trainer allows students to build a complete refrigeration system from individual components, working through the full sequence of planning, installation, and maintenance found in a real project. The exercise begins with the refrigeration assembly itself: installing the LP and HP pressure switches, the expansion valve, and the pipework of the refrigeration circuit, with all pipe joints bolted rather than soldered so the circuit can be assembled and disassembled repeatedly. Electro-technical installation follows, covering the wiring and connection of all units and switching elements.

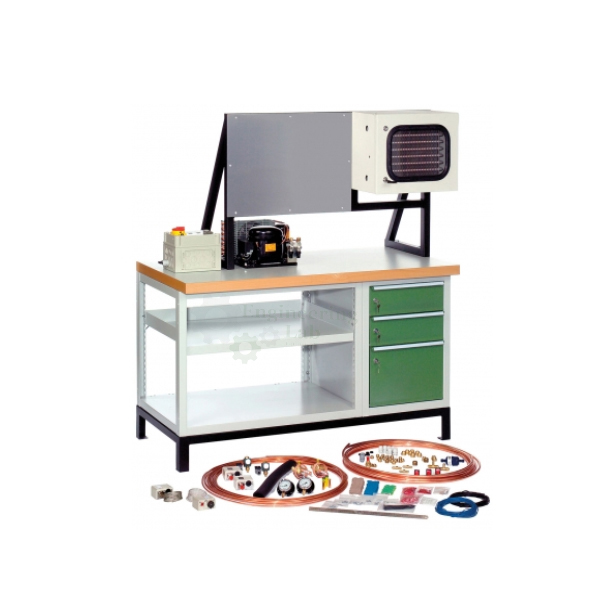

The experiment is arranged on a workbench fitted with drawers for storing components and tools, with the assembly panel and refrigeration chamber mounted on a frame. Refrigeration and electrical components are attached to the aluminum assembly panel, while the frame, condensing unit, and switch cabinet are bolted permanently to the working surface.
The experiment is arranged on a workbench fitted with drawers for storing components and tools, with the assembly panel and refrigeration chamber mounted on a frame. Refrigeration and electrical components are attached to the aluminum assembly panel, while the frame, condensing unit, and switch cabinet are bolted permanently to the working surface.
FEATURES:
Planning and executing assembly steps and processes
Making pipe joints in accordance with a system diagram
Carrying out electrical installation in accordance with a circuit diagram
Filling and evacuating of the refrigeration system
Commissioning and checking the refrigeration system after successful assembly
Assembly of a refrigeration system from individual components
SPECIFICATION:
Condensing unit :
Power consumption: 190W
Refrigeration capacity: 373W at 5°C evaporation temperature
Receiver: approx. 1L
Show case evaporator
Capacity: 50W at t0=-6°C, ?T=8K
Transfer area: 1,06m2
Refrigeration chamber with sight window :
LxWxH: 480x280x390mm
Aluminum assembly panel
LxW: 710x500mm
Thermostatic expansion valve, adjustable
Thermostat, adjustable: -30…15°C
Required for operation :
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 1600 x 800 x 1400 mm
Weight (approx.): 140 kg
