Capping Set Vertical
Product Code : EL-CTLE-10916

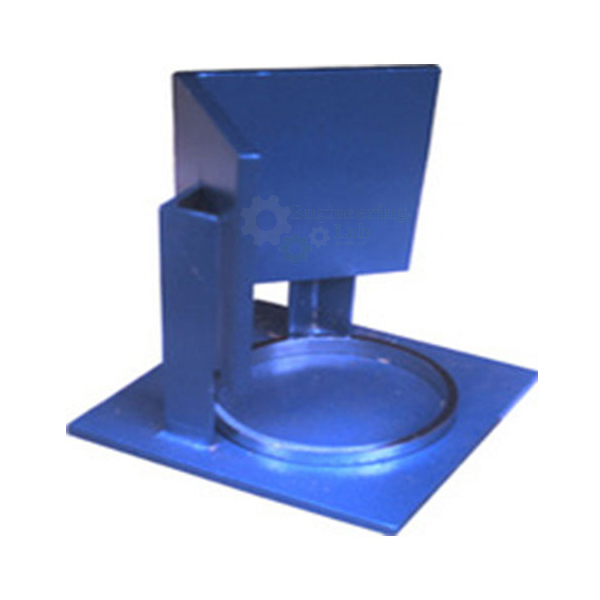

Capping Set Vertical (code EL-CTLE-10916) is a capping mould in which a concrete cylinder stands upright on a machined plate while its end is capped with molten compound, made for cylinders 150 mm dia. × 300 mm long and 100 mm × 200 mm. An upright on the base guides the 19 mm thick capping plate and the cylinder into position, the plate has a recess to hold the compound, and a cylinder carrier and ladle are included.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | Vertical capping mould for cylinders |
| Cylinder sizes | 150 mm dia. × 300 mm long; 100 mm × 200 mm |
| Base | Base with an upright that guides the positioning of the capping plate and cylinder |
| Capping plate | 19 mm thick, machined |
| Compound recess | Recess in the plate for the molten capping compound |
| Supplied with | Cylinder carrier and ladle |
| Standards | IS : 516 1959, BS 1881-120 |
| Product code | EL-CTLE-10916 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Capping Set Vertical Used For?
A compression test needs cylinder ends that are plane and at right angles to the axis, otherwise the load is not spread evenly over the specimen. With this set, molten capping compound is poured from the ladle into the recess of the capping plate, and the cylinder, handled with the carrier, is lowered against the upright so that it sits square on the plate while the compound hardens into a thin cap. The cylinder is then turned over and its other end is capped in the same way; the standards listed for it are IS : 516 1959 and BS 1881-120.
What to Specify When Ordering
- Quantity — the number of vertical capping sets required.
- Cylinder size — 150 mm dia. × 300 mm or 100 mm × 200 mm.
Frequently Asked Questions
What cylinder sizes does the vertical capping set take?
It is made for concrete cylinders of 150 mm diameter × 300 mm length and for cylinders of 100 mm × 200 mm.
How thick is the capping plate?
The capping plate is 19 mm thick and machined, with a recess in its face that holds the molten capping compound while the cap forms.
How is the cylinder kept square on the plate?
The base carries an upright that acts as a guide, positioning both the capping plate and the cylinder so that the cylinder stands correctly over the compound.
What accessories are included?
The set comes complete with a cylinder carrier for handling the specimen and a ladle for pouring the molten capping compound into the plate recess.
Which standards are listed for it?
For this vertical capping set, the standards listed are IS : 516 1959 and BS 1881-120.
How is the capping set ordered?
Use the Add To Cart enquiry button on this page, or send the number of sets and the delivery location using the contact page.
OEM Manufacturer
Buyers of the Capping Set Vertical deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
