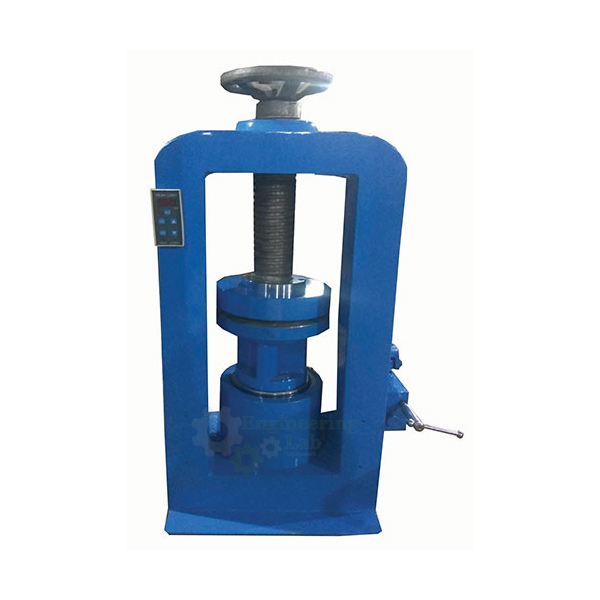

Digital Compression Testing Machine (Hand Operated)
.jpg)
Product Code : EL-CTLE-10921
Digital Compression Testing Machine (Hand Operated) (code EL-CTLE-10921) is a C channel load frame for compression testing in which the applied load is read from a digital indicator mounted on the side of the machine. The indicator works on a single phase electrical supply, while the frame has a centrally fitted hydraulic jack, a grooved lower platen located by a centering pin and a self-aligning upper platen on a lead screw.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Load indication | Digital indicator fitted to the side of the machine |
| Electrical supply | Electrically operated on single phase |
| Frame | C channels welded at the top as well as the bottom, withstanding high loads |
| Jack | Hydraulic jack at the centre of the frame base |
| Lower platen | With spacer block, located over the jack by a centering pin; grooves for correct specimen placement |
| Upper platen | On the lower end of a lead screw through the frame top; spherical seat for self-alignment |
| Platens | Machined, hardened and polished |
| Standards | IS 516, BS 1881 |
| Product code | EL-CTLE-10921 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Digital Compression Testing Machine (Hand Operated) Used For?
Concrete strength checks depend on reading the load at failure correctly, and a digital indicator shows that load as a number rather than as a pointer position on a dial. For a test the specimen is centred on the grooved lower platen, the lead screw is lowered until the spherically seated upper platen bears on it, and load is applied through the jack by hand while the indicator displays the rising load. The load at failure is noted and divided by the loaded area of the specimen to give its compressive strength, and the standards listed for it are IS 516 and BS 1881.
What to Specify When Ordering
- Quantity — the number of digital machines required.
Frequently Asked Questions
How is the load read on this machine?
A digital indicator fitted to the side of the machine displays the load, and the indicator is electrically operated on a single phase supply.
What kind of load frame does it use?
The frame is built from C channels welded at the top and bottom, and a hydraulic jack is mounted at the centre of its base.
How are the platens arranged?
The lower platen, with spacer block, sits over the jack on a centering pin and is grooved for locating specimens; the upper platen hangs from a lead screw on a spherical seat.
What finish do the platens have?
Both platens are machined, hardened and polished, so the specimen is loaded between hard, finished bearing faces.
Which standards are listed?
For this digital hand operated machine, the standards listed are IS 516 and BS 1881.
How can it be ordered?
Use the Add To Cart enquiry button on this page, or give the number of machines and the delivery location through the contact page.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Digital Compression Testing Machine (Hand Operated) at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
