Alkali Aggregate Reaction Bath
Product Code : EL-ATLE-10492

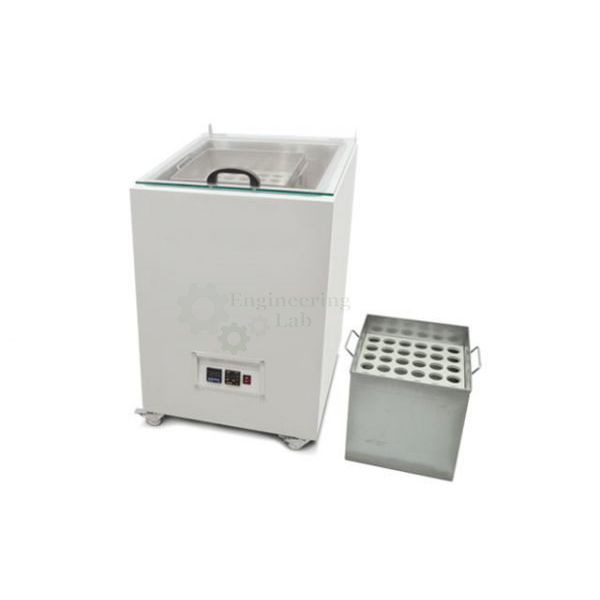

Alkali Aggregate Reaction Bath (code EL-ATLE-10492) is a bath for keeping 25 × 25 × 285 mm specimens in NaOH (sodium hydroxide) or another solution at a specified temperature during alkali aggregate reaction testing. Its stainless steel chamber holds 36 specimens, the temperature is adjustable from ambient to 80 °C by a digital controller with 2 °C accuracy, and 3 stainless steel specimen cans, each with a hanger for 3 specimens, are supplied.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Keeping 25 × 25 × 285 mm samples in NaOH (sodium hydroxide) or any other solution at a specified temperature |
| Chamber | Stainless steel |
| Capacity | 36 specimens (25 × 25 × 285 mm) |
| Temperature range | Ambient to 80 °C |
| Controller | Digital, 2 °C accuracy |
| Specimen cans | Stainless steel; each with a stainless steel hanger holding 3 specimens of 25 × 25 × 285 mm |
| Supplied with | 3 stainless steel alkali specimen cans |
| Additional cans | Ordered separately |
| Standards | ASTM C227 |
| Product code | EL-ATLE-10492 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Alkali Aggregate Reaction Bath Used For?
Some aggregates contain reactive silica that combines with alkalis in cement to form a gel, which swells and can crack concrete. To check an aggregate, mortar bars of 25 × 25 × 285 mm are made with it and stored in the cans, in sodium hydroxide or another solution, inside the bath at the specified temperature; the bars are taken out at intervals and their length is measured, and the expansion shows whether the aggregate is potentially reactive. With 36 places and 3 bars per can, several aggregates can be run at the same time. The standard listed for it is ASTM C227.
What to Specify When Ordering
- Quantity — the number of reaction baths required.
- Specimen cans — the number of additional alkali specimen cans needed beyond the 3 supplied, each holding 3 specimens.
Frequently Asked Questions
How many specimens does the bath hold?
The stainless steel chamber has a capacity for 36 specimens of 25 × 25 × 285 mm, held in specimen cans with 3 specimens on each can's hanger.
What temperature range does it cover?
The temperature can be adjusted between ambient and 80 °C using the digital controller, which has an accuracy of 2 °C.
Which solutions can be used?
The specimens can be kept in NaOH (sodium hydroxide) or in any other solution required by the test, at the specified temperature.
How many specimen cans are supplied?
Three stainless steel alkali specimen cans are supplied with the bath, and additional cans should be ordered separately to use more of its 36-specimen capacity.
What is alkali aggregate reaction?
It is a reaction between alkalis in the cement paste and certain reactive minerals in the aggregate, forming a gel that absorbs water, swells and can crack the concrete.
Which standard is listed for the bath?
The standard listed for it is ASTM C227, which uses mortar bars to assess the potential alkali reactivity of aggregates.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Alkali Aggregate Reaction Bath at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its aggregate testing equipment for grading, strength, abrasion and shape tests go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
Related Aggregate Testing Equipment
- Magnesium Sulphate / Sodium Sulphate Test Water Bath — stainless steel dipping bath with heating, cooling and circulation for sulphate soundness tests on aggregates.
- Chloride Titrator Type — chloride titrator strips in packs of 40 for 0.005-0.1% or 0.05-1% NaCl in soil and aggregate.
- Sand Equivalent Test Set — cased sand equivalent kit with four cylinders, irrigator, siphon, weighted foot and stock solution.
- Climatic Chambers — programmable temperature and humidity chambers with PT100 sensor for testing aggregates, cement and concrete.
See the full Aggregate Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other aggregate testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of baths and any additional specimen cans required and the delivery location through the contact page; the Add To Cart button on this page also adds the Alkali Aggregate Reaction Bath to an enquiry.
