Length Gauge Elongation Gauge
Product Code : EL-ATLE-10475

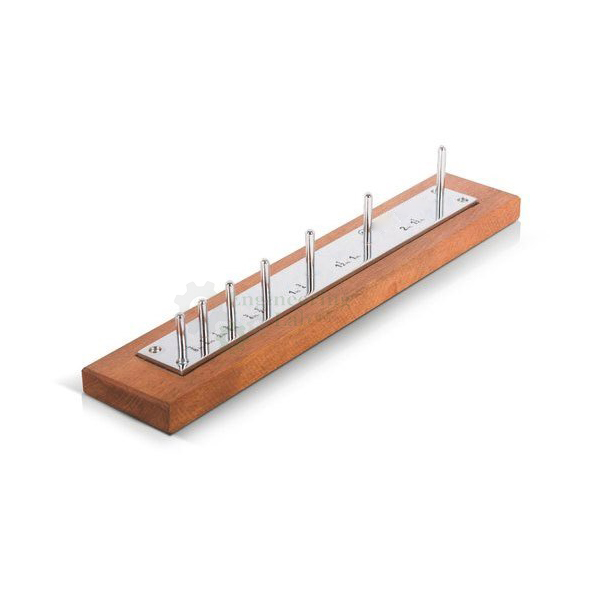

Length Gauge Elongation Gauge (code EL-ATLE-10475) is an aggregate testing gauge used to find out whether aggregate particles are elongated. It consists of a hard wood base carrying metal studs that stand vertically on it, and the standards listed for it are IS 2386 (Part-1) and BS 812.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Determining whether aggregate particles are elongated |
| Base | Hard wood |
| Studs | Metal, standing vertically on the base in the arrangement given in the listed standards |
| Standards | IS 2386 (Part-1), BS 812 |
| Product code | EL-ATLE-10475 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Length Gauge Elongation Gauge Used For?
An elongated particle is one whose length is large compared with its width and thickness; such particles break more easily and make a mix harder to compact, so their share in an aggregate is checked. Each particle of a sieved size fraction is offered lengthwise to the gap between the pair of studs for that fraction, and a particle that will not pass between them is elongated. The elongated particles are weighed, and their mass as a percentage of the fraction mass gives the elongation index.
What to Specify When Ordering
- Quantity — the number of length gauges required.
Frequently Asked Questions
What is the Length Gauge Elongation Gauge used for?
It is used in aggregate testing to decide whether particles are elongated, by checking each particle of a size fraction against the gap between a pair of studs.
What is the gauge made of?
The base is made of hard wood, and metal studs stand vertically on it, spaced to give a separate gap for each aggregate size fraction.
How is the elongation index found?
Particles that will not pass lengthwise between the studs for their fraction are separated and weighed, and their mass is expressed as a percentage of the fraction mass.
Which standards cover the elongation gauge?
The standards listed are IS 2386 (Part-1) and BS 812, both of which include the elongation test on aggregate particles.
OEM Manufacturer
Buyers of the Length Gauge Elongation Gauge deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests aggregate testing equipment for grading, strength, abrasion and shape tests, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
