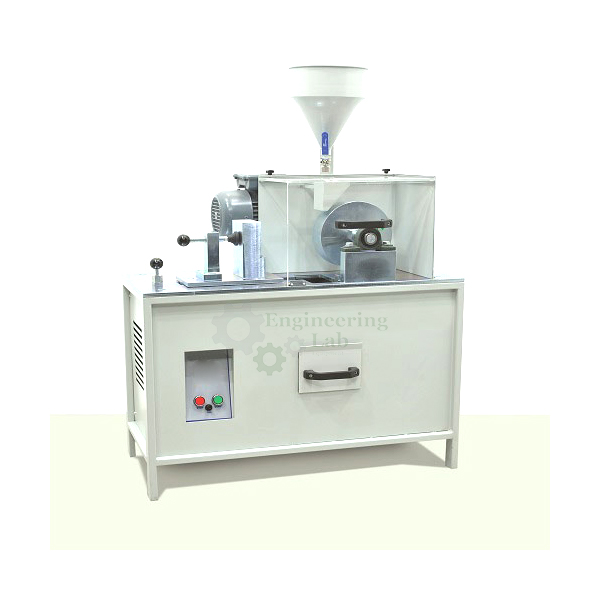

Wide Wheel Abrasion Testing Machine
Product Code : EL-ATLE-10472
Wide Wheel Abrasion Testing Machine (code EL-ATLE-10472) is a machine for determining the resistance to abrasion or wear of natural stones and concrete products used for paving, using a 70 mm thick abrasion wheel turning at 75 rpm. A narrow wheel version with a 10 mm thick wheel is also offered for unglazed tiles, tile grouts and clay pavers; the machine measures 620 × 670 × 1350 mm, weighs approximately 130 kg, draws 370 W and stops at a preset number of revolutions.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Versions | Wide wheel and narrow wheel |
| Revolution counter | Digital; stops the machine at the end of a preset number of revolutions |
| Dimensions | 620 × 670 × 1350 mm |
| Weight | Approx. 130 kg |
| Power | 370 W |
| Ordered separately | Abrasive corundum sand, calibration marble (boloneisse) and mould (for EN 12808-2) |
| Wide wheel version | |
| Use | Resistance to abrasion/wear of natural stones and concrete products used for paving |
| Abrasion wheel | 70 mm thick, rotating at 75 rpm |
| Standards | EN 1338, EN 1339, EN 1340, EN 1341, EN 1342, EN 13748-1, EN 13748-2, EN 14157 |
| Narrow wheel version | |
| Use | Resistance to abrasion of unglazed tiles, grouts used for tiles and clay pavers |
| Abrasion wheel | 10 mm thick |
| Standards | EN 10545-6, EN 12808-2 |
| Supply | |
| Product code | EL-ATLE-10472 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Wide Wheel Abrasion Testing Machine Used For?
In the wide wheel test, a paving block, flag, kerb or stone slab is pressed against a steel wheel while abrasive sand is fed into the contact zone, and the length of the groove worn into the specimen after a set number of revolutions indicates its abrasion resistance. The operator clamps the specimen, fills the sand feed with corundum, sets the digital counter and starts the machine, which stops by itself at the end of the count before the groove is measured. The narrow wheel version applies the same principle to unglazed tiles, grouts and clay pavers.
What to Specify When Ordering
- Quantity — the number of abrasion machines required.
- Version — the wide wheel version (70 mm wheel) for stone and concrete paving products, or the narrow wheel version (10 mm wheel) for unglazed tiles, grouts and clay pavers.
- Consumables — the abrasive corundum sand, calibration marble and EN 12808-2 mould, which are ordered separately.
Frequently Asked Questions
What is the difference between the wide and narrow wheel versions?
The wide wheel version has a 70 mm thick wheel turning at 75 rpm for natural stone and concrete paving products, while the narrow wheel version has a 10 mm thick wheel for unglazed tiles, tile grouts and clay pavers.
Which standards apply to each version?
The standards listed are EN 1338, 1339, 1340, 1341, 1342, 13748-1, 13748-2 and 14157 for the wide wheel, and EN 10545-6 and 12808-2 for the narrow wheel.
How does the machine know when to stop?
A digital counter is set to the number of revolutions required, and the machine stops automatically when it reaches the end of that preset count.
What are the size, weight and power of the machine?
It measures 620 × 670 × 1350 mm, weighs approximately 130 kg and has a power rating of 370 W.
Which consumables must be ordered separately?
Abrasive corundum sand, the calibration marble and the mould used for EN 12808-2 grout specimens are not part of the machine and should be ordered separately.
How is an order placed for this machine?
Use the Add To Cart enquiry button on this page, or send the quantity, the wheel version and your delivery location through the contact page.
OEM Manufacturer
Buyers of the Wide Wheel Abrasion Testing Machine deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests aggregate testing equipment for grading, strength, abrasion and shape tests, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
