Average Least Dimension
Product Code : EL-ATLE-10480

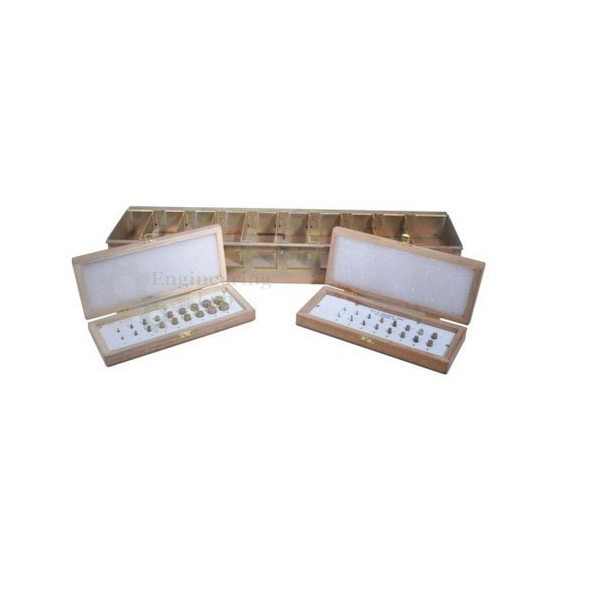

Average Least Dimension (code EL-ATLE-10480) is a device for measuring the average least dimension (ALD) of fine aggregates. It is complete with an ALD box, an adjustable spacer for fine aggregates in the 2-9 mm range, one spacer set/fine aggregates spare case and a spacer set extension covering 10-18 mm.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Measuring the average least dimension (ALD) of fine aggregates |
| ALD box | Included |
| Adjustable spacer | For fine aggregates in the 2-9 mm range |
| Spare case | One spacer set/fine aggregates spare case |
| Spacer set extension | Covers 10-18 mm |
| Product code | EL-ATLE-10480 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Average Least Dimension Used For?
The least dimension of an aggregate particle is its smallest measurement, normally its thickness when it lies on its flattest face, and the average of this value over a sample is used in work such as the design of surface dressings, where a single layer of chips is spread on a binder. The operator uses the ALD box with the adjustable spacer set for particles in the 2-9 mm range, or fits the spacer set extension for sizes of 10-18 mm, and from the measurements works out the average least dimension of the sample.
What to Specify When Ordering
- Quantity — the number of ALD devices required.
Frequently Asked Questions
What does the Average Least Dimension device measure?
It measures the average least dimension, or ALD, of fine aggregates, the mean of the smallest dimension of the particles in a sample.
What is included with the device?
It comes complete with an ALD box, an adjustable spacer, one spacer set/fine aggregates spare case and a spacer set extension.
What particle sizes can be measured?
The adjustable spacer covers fine aggregates in the 2-9 mm range, and the spacer set extension takes the range on to 10-18 mm.
What is the least dimension of a particle?
It is the smallest of a particle's measurements, usually its thickness when the particle rests on its flattest face, and it is averaged over the sample to give the ALD.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Average Least Dimension at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its aggregate testing equipment for grading, strength, abrasion and shape tests go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
Related Aggregate Testing Equipment
- Shape Index Caliper — 200 mm aggregate shape caliper graduated in 0.05 mm, measuring 450 × 150 × 50 mm.
- Thickness Gauge — seven-slot flakiness gauge for aggregate fractions from 6.3 to 63 mm.
- Length Gauge Elongation Gauge — hard wood based elongation gauge with vertical metal studs for checking aggregate particle length.
- Flakiness Sieve Set — set of 7 slotted steel sieves for flakiness index testing of 6.3 to 63 mm aggregate.
See the full Aggregate Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other aggregate testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of ALD devices required and the delivery location through the contact page; the Add To Cart button on this page also adds the Average Least Dimension to an enquiry.
