Sample Splitter

Product Code : EL-ATLE-10464

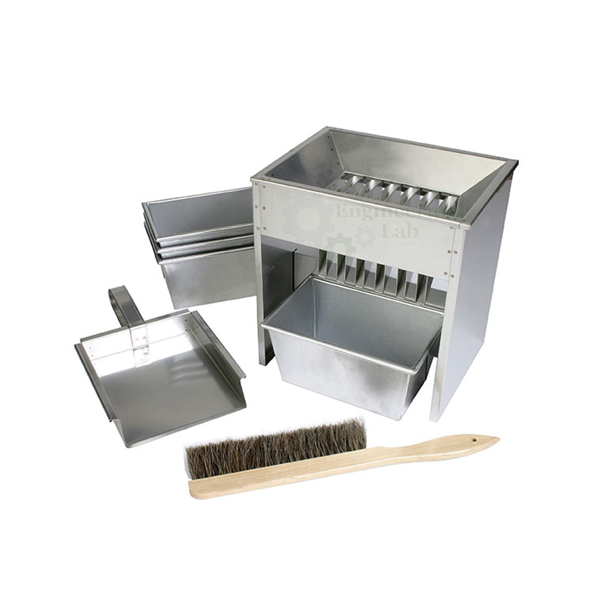

Sample Splitter (code EL-ATLE-10464) is a divider for cutting down sand and aggregate samples that are too large in volume to handle conveniently into smaller portions for laboratory testing. It accepts material from sand sizes up to 108 mm diameter through 12 mm wide chute bars giving openings from 12 mm to 108 mm, and it has a 30 litre clam shell hopper, a cadmium-plated body and two collecting pans.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Sample Splitter Used For?

A field sample of sand or aggregate is normally much larger than a grading or other laboratory test requires, and taking a handful from the top of the heap can leave the coarse or fine particles under-represented. With the splitter, the operator releases the whole sample from the hopper across the chutes, which share it between the two collecting pans; the contents of one pan are put aside and the other pan is split again until a test portion of the right size is left. The chute opening is chosen to suit the largest particle, up to 108 mm. The standards listed for it are EN 932-5, EN 933-3, EN 932-1 and ASTM C 136.

What to Specify When Ordering

• Quantity — the number of splitters required.
• Particle size — the largest particle size in the material to be split, up to 108 mm, so that a suitable chute opening is used.

Frequently Asked Questions

What kind of samples can the Sample Splitter reduce?
It reduces sand and aggregate test samples that are too large in volume to handle conveniently, taking material from sand sizes up to 108 mm diameter.

How wide are the chute openings?
Each chute bar is 12 mm wide, so openings of 12, 24, 36, 48, 60, 72, 84, 96 and 108 mm can be made to suit the material being divided.

What is the capacity of the hopper?
The splitter has a clam shell hopper with a capacity of 30 litres, which holds the sample before it is released across the chutes.

How is the splitter protected against corrosion?
The whole unit is cadmium plated, a finish applied to protect the body, hopper and chutes against rust.

What comes with the Sample Splitter?
It is supplied complete with two collecting pans, which sit under the chutes and receive the two halves of the sample at each split.

Which standards are listed for the splitter?
The standards listed for it are EN 932-5, EN 933-3, EN 932-1 and ASTM C 136.

OEM Manufacturer

The Sample Splitter is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests aggregate testing equipment for grading, strength, abrasion and shape tests for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
