High Capacity Sieve Shaker
Product Code : EL-ATLE-10494
High Capacity Sieve Shaker (code EL-ATLE-10494) is a vibrating sieve shaker for sizing large quantities of crushed stone, sand, gravel, slag, coal, coke, ores, pellets and similar materials. It takes about 30 litres (1 ft³) of sample and gives two to seven separations at once, holding six 457 × 660 × 75 mm screen trays and one dustpan on interlocking spacers that let each tray be removed on its own.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Sizing large quantities of crushed stones, sand, gravel, slag, coal, coke, ores, pellets and similar materials |
| Sample capacity | About 30 litres (1 ft³) |
| Separations | Two to seven simultaneously |
| Vibrating units | Interlocking spacers that support and separate the screen trays |
| Tray clearance | Equal clearance among trays, allowing independent removal of each tray |
| Tray capacity | Six screen trays and one dustpan |
| Screen tray size | 457 × 660 × 75 mm |
| Screen trays | Ordered separately |
| Optional cabinet | Soundproof and security cabinet (accessory) |
| Standards | EN 932-5 |
| Product code | EL-ATLE-10494 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the High Capacity Sieve Shaker Used For?
Large field samples of coarse material are often too bulky for round test sieves, and a high capacity shaker grades them on rectangular screen trays instead. The operator fits the screen trays needed for the separation, from two up to seven fractions, loads a sample of up to about 30 litres onto the top tray and runs the shaker; each tray can then be withdrawn separately because of the equal spacing, and the material retained on each is weighed. Fitting the shaker inside the soundproof and security cabinet reduces noise and encloses the moving parts. The standard listed for it is EN 932-5.
What to Specify When Ordering
- Quantity — the number of shakers required.
- Screen trays — the 457 × 660 × 75 mm screen trays wanted, up to six per shaker, as they are ordered separately.
- Cabinet — whether the soundproof and security cabinet is required.
Frequently Asked Questions
How much sample can the shaker handle?
It has a capacity of about 30 litres, or 1 ft³, of sample, and it can make two to seven separations at the same time.
How many screen trays does it hold?
It holds six screen trays of 457 × 660 × 75 mm and one dustpan; the screen trays have to be ordered separately from the shaker.
Can individual trays be taken out?
Yes. Interlocking spacers support and separate the trays with equal clearance between them, so each tray can be removed independently of the others.
Which materials is it intended for?
It is intended for sizing large quantities of crushed stones, sand, gravel, slag, coal, coke, ores, pellets and other similar materials.
Is a cabinet available?

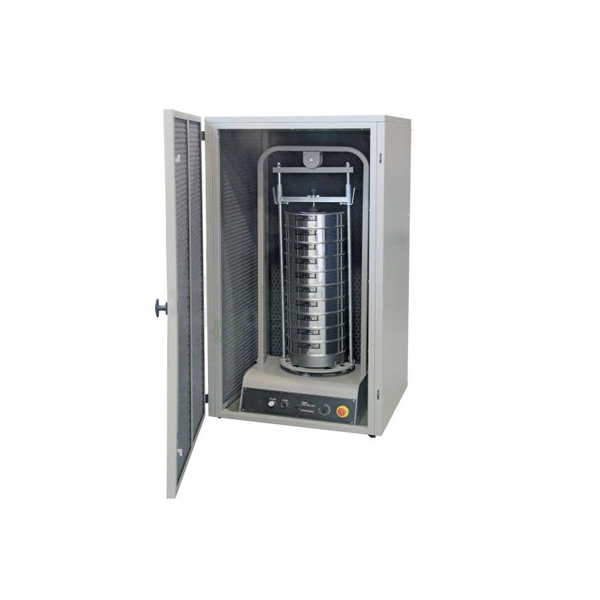

Yes, the shaker can be completed with a soundproof and security cabinet, offered among its accessories, which encloses the shaker during operation.
Which standard is listed for the shaker?
The standard listed for it is EN 932-5, which covers common equipment for testing aggregates.
OEM Manufacturer
The High Capacity Sieve Shaker is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests aggregate testing equipment for grading, strength, abrasion and shape tests for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
