Sand Equivalent Test Set
Product Code : EL-ATLE-10495

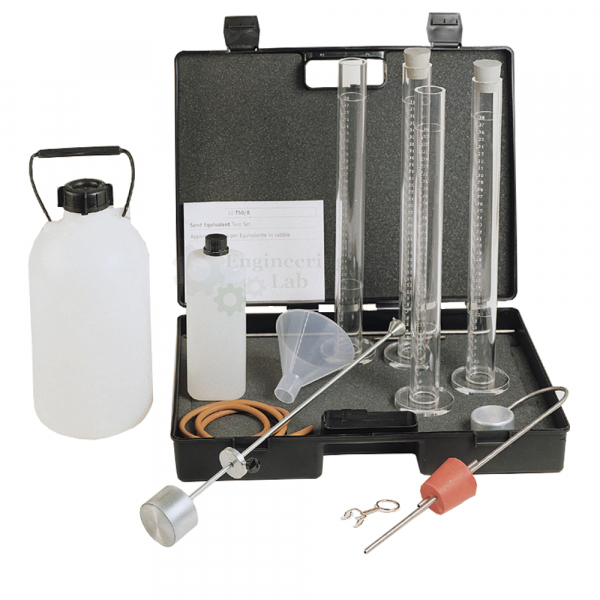

Sand Equivalent Test Set (code EL-ATLE-10495) is a kit for the sand equivalent test, which measures the relative amount of clay-like fines in a sand. Each of the two sets contains four measuring cylinders, two rubber stoppers, a measuring can, an irrigator tube, a siphon assembly with bottle, a weighted foot, a funnel, a graduated rule and 1 litre of stock solution, in a 500 × 400 × 130 mm plastic carrying case weighing approximately 7 kg in total.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Versions | Two sets, identical except for the measuring cylinders and the weighted foot |
| Contents | Four measuring cylinders, two rubber stoppers, measuring can, irrigator tube, siphon assembly with bottle, weighted foot, funnel, graduated rule, 1 litre of stock solution, plastic carrying case |
| ASTM/AASHTO version | Measuring cylinders totally graduated; weighted foot slightly different |
| Packing | All items in the plastic carrying case except the siphon assembly with stock solution bottle, which is packed separately |
| Spare parts | Each item can be ordered individually |
| Recommended accessory | Mechanical shaker |
| Case dimensions | 500 × 400 × 130 mm |
| Total weight | Approx. 7 kg |
| Standards | EN 933-8, ASTM D2419 |
| Product code | EL-ATLE-10495 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Sand Equivalent Test Set Used For?
Sand containing a lot of clay or very fine dust needs more water in concrete and bonds poorly in asphalt, and the sand equivalent test gives a quick measure of how clean a sand is. A measured quantity of sand is placed in a cylinder with stock solution and shaken, preferably on a mechanical shaker; the irrigator tube, fed from the siphon assembly, then washes the fines up into suspension. After settling, the operator reads the height of the clay column on the graduated rule, lowers the weighted foot to find the height of the sand, and the ratio of the two readings gives the sand equivalent. The standards listed are EN 933-8 and ASTM D2419.
What to Specify When Ordering
- Quantity — the number of sand equivalent sets required.
- Version — which of the two sets is required: the ASTM/AASHTO version, with totally graduated measuring cylinders and its own weighted foot, or the other version.
- Individual items — any single items, such as measuring cylinders, the weighted foot or stock solution, wanted on their own.
Frequently Asked Questions
What is in the Sand Equivalent Test Set?
Each set has four measuring cylinders, two rubber stoppers, a measuring can, an irrigator tube, a siphon assembly with bottle, a weighted foot, a funnel, a graduated rule, 1 litre of stock solution and a carrying case.
How do the two sets differ?
They are identical apart from the measuring cylinders, which are totally graduated in the ASTM/AASHTO version, and the weighted foot, which is slightly different in that version.
How is the set packed?
Everything fits in the plastic carrying case, measuring 500 × 400 × 130 mm, except the siphon assembly with its stock solution bottle, which is packed separately; the total weight is about 7 kg.
Can spare parts be bought individually?
Yes, each item in the set can be ordered individually, which allows a broken cylinder or a used-up stock solution to be replaced.
Is a mechanical shaker needed?
The use of a mechanical shaker is recommended for the test, so that the cylinders are shaken in the same way from one test to the next.
Which standards does the kit relate to?
The standards listed are EN 933-8 and ASTM D2419, both of which describe the sand equivalent test for fines in sand.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Sand Equivalent Test Set at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its aggregate testing equipment for grading, strength, abrasion and shape tests go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
