Sand Pouring Cylinder
Product Code : EL-STLE-10385

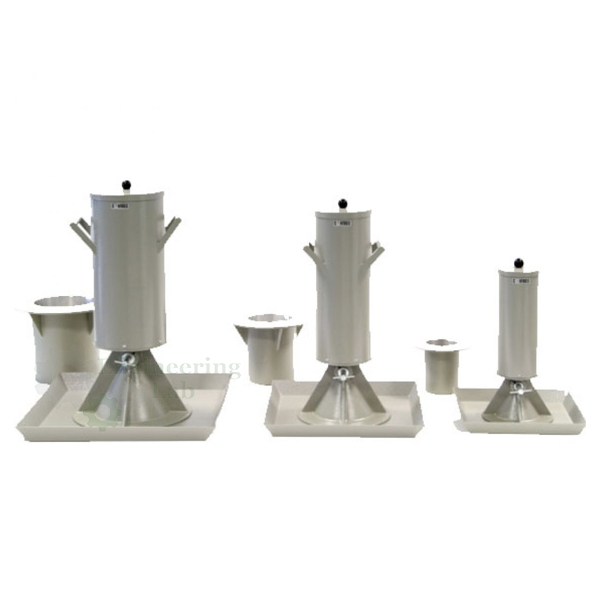

Sand Pouring Cylinder (code EL-STLE-10385) is a sand replacement apparatus for checking the degree of compaction on site, by determining the in-place dry density of compact, fine and medium grained soils in layers not more than 500 mm thick. The small cylinder holds 3 litres and has a conical funnel and shutter, the cylinders and calibrating cans are cast aluminium with a plated sheet steel tray, and three models are offered to suit the soil grain size.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | On-site verification of the degree of compaction; in-place determination of the dry density of compact, fine and medium grained soils |
| Layer thickness | Not exceeding 500 mm |
| Method | Sand replacement: compacted soil is removed and weighed, the hole is refilled with sand from the cylinder, and the volume of sand used gives the density of the removed soil |
| Small cylinder | 3 litre capacity, fitted with conical funnel and shutter |
| Calibrating container | Internal diameter 100 mm, height 150 mm |
| Materials | Sand pouring cylinders and calibration cans of machined cast aluminium; tray of plated sheet steel |
| Models | Three, selected according to the grain size of the soil |
| Medium and Large sizes | Medium (150 mm) and Large (200 mm) cylinders to IS 2720 (P-XXVIII) also available |
| BS pattern | Same as the small cylinder model, to the BS standard, for 100 mm, 150 mm and 200 mm diameter cylinders |
| Accessories | Metal tray, 300 mm square and 40 mm deep, with hole |
| Standards | IS 2720 (Part XXVIII) 1966, BS 1377-9, BS 1924:2 |
| Product code | EL-STLE-10385 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Sand Pouring Cylinder Used For?
Field density tests show whether compacted fill, embankment or road layers have reached the density specified, by comparing the dry density on site with the laboratory maximum. The operator digs a hole through the layer, weighs the soil removed and keeps a portion for moisture content; the cylinder, filled with sand of known bulk density, is set over the hole on the tray and the shutter opened so the sand fills the hole. The mass of sand run out, less the sand held in the cone, gives the hole volume, and the calibrating container is used beforehand to find the bulk density of the sand. The standards listed are IS 2720 (Part XXVIII) 1966, BS 1377-9 and BS 1924:2.
What to Specify When Ordering
- Quantity — the number of sand pouring cylinders required.
- Size — the small 3 litre cylinder, the Medium (150 mm) or Large (200 mm) cylinder, or the alternative pattern for 100, 150 or 200 mm diameter cylinders, chosen to suit the grain size of the soil.
- Tray — whether the metal tray, 300 mm square and 40 mm deep with hole, is to be included.
Frequently Asked Questions
Which soils and layer thicknesses is it used for?
It is used for the in-place dry density of compact, fine and medium grained soils, in layers not exceeding 500 mm in thickness.
Which cylinder sizes can be supplied?
Three models are offered, chosen by soil grain size: the small 3 litre cylinder, plus Medium (150 mm) and Large (200 mm) cylinders, with a further pattern made for 100, 150 and 200 mm diameters.
What are the cylinders made of?
Cast aluminium is used for both the cylinders and the calibration cans, which are machined, while the tray is of plated sheet steel.
What is the calibrating container for?
The container, 100 mm in internal diameter and 150 mm high, has a known volume and is filled from the cylinder to find the bulk density of the sand before field tests.
What tray is offered as an accessory?
The accessory is a metal tray 300 mm square and 40 mm deep with a hole, which is placed on the levelled ground over the test position.
Which standards are named for sand replacement here?
The standards listed are IS 2720 (Part XXVIII) 1966, BS 1377-9 and BS 1924:2 for this sand replacement apparatus.
