Core Cutters
Product Code : EL-STLE-10395

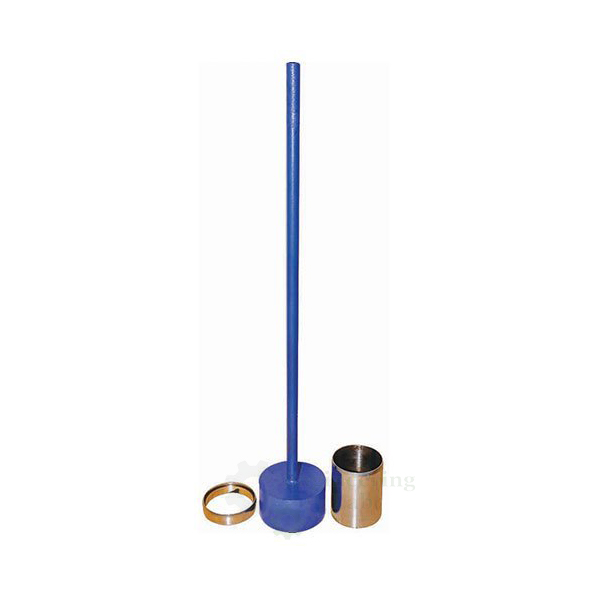

Core Cutters (code EL-STLE-10395) are drive cylinders used to determine the in-situ density and moisture content of soil. Made of steel protected against corrosion, each set consists of a core cutter, driving dolly and driving rammer, and two versions are offered: 100 mm dia. × 130 mm high and 150 mm dia. × 180 mm.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Determining the in-situ density and moisture content of soil |
| Material | Steel protected against corrosion |
| Set contents | Core cutter, driving dolly and driving rammer |
| Versions | Dia. 100 × 130 mm high; dia. 150 × 180 mm |
| Standards | BS 1377:9 |
| Product code | EL-STLE-10395 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Are the Core Cutters Used For?
The core cutter method gives the field density of fine grained soils that can be cut cleanly, such as compacted clayey fill free of large stones. With the dolly fitted on top so that the rammer blows do not damage the cutter, the cutter is driven into the soil, then dug out and the soil trimmed flush with both ends. The core is weighed, the known cutter volume gives the bulk density, and a moisture content from the dried soil converts it to dry density for comparison with the compaction specified. The standard listed for it is BS 1377:9.
What to Specify When Ordering
- Quantity — the number of core cutter sets required.
- Size — 100 mm dia. × 130 mm or 150 mm dia. × 180 mm.
Frequently Asked Questions
Which core cutter sizes are available?
Two versions are offered: a cutter of 100 mm dia. × 130 mm high and a 150 mm dia. × 180 mm core.
What does each set contain?
Each set includes the core cutter, a driving dolly and a driving rammer, all made of steel protected against corrosion.
How is the density calculated?
The extracted core is trimmed, weighed and dried; dividing its mass by the cutter volume gives the bulk density, and the moisture content converts this to dry density.
Which standard is quoted for the core cutters?
The standard listed for them is BS 1377:9, under which they are used for in-situ density and moisture content work on soil.
How can core cutters be ordered?
Send the quantity of each size and your delivery location through the contact page, or use the Add To Cart enquiry button on this page.
OEM Manufacturer
The Core Cutters are made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests soil testing equipment for classification, compaction, density, shear and consolidation tests for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
Related Soil Testing Equipment
- Surface Soil Sampler — drive tube sampler with 5 kg sliding hammer for in-situ soil density.
- Sand Pouring Cylinder — cast aluminium sand replacement cylinder with funnel and shutter for field dry density of soils.
- Soil Sampler, Cutter and Extruder — rack and pinion soil specimen cutter and extruder for consolidation, shear and triaxial samples.
See the full Soil Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other soil testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. To ask for a quotation, send the number of sets and the cutter size, 100 or 150 mm diameter and your delivery location through the contact page, or use the Add To Cart enquiry button on this page.
