Plate Load Bearing Test Apparatus
Product Code : EL-STLE-10375
Plate Load Bearing Test Apparatus (code EL-STLE-10375) is a field set for estimating the bearing capacity of soil under field loading for a given loading plate and depth of embedment, and for load tests on soil and flexible pavement components of airport and highway pavements. It is offered as a 500 kN set with 600 mm and 760 mm dia. plates or a 200 kN set with 300 mm and 450 mm plates, each with a hydraulic hand pump, pressure transducer, digital readout and 2.4 m datum bar.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Estimating the bearing capacity of soil under field loading conditions for a specific loading plate and depth of embedment |
| Pavement testing | Load tests of soil and flexible pavement components for evaluation and design of airport and highway pavements |
| 500 kN set | |
| Piston assembly | 500 kN capacity, with hydraulic hand pump |
| Load measurement | Pressure transducer with LPI battery operated digital readout unit |
| Datum bar | 2.4 m long |
| Dial gauges | 3 pcs. digital dial gauges, 25 mm travel × 0.01 mm, with dial supports |
| Loading plates | 600 mm and 760 mm dia. |
| 200 kN Plate Loading Test Set | |
| Piston assembly | 200 kN capacity, with hydraulic hand pump |
| Load measurement | Pressure transducer with LPI battery operated digital readout unit |
| Datum bar | 2.4 m long |
| Dial gauges | 3 pcs. digital dial gauges, 25 mm travel × 0.01 mm, with dial supports |
| Loading plates | 300 mm and 450 mm dia. |
| Standards | ASTM D1194, D1195, D1196; BS 1377:9 |
| Supply | |
| Product code | EL-STLE-10375 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Plate Load Bearing Test Apparatus Used For?

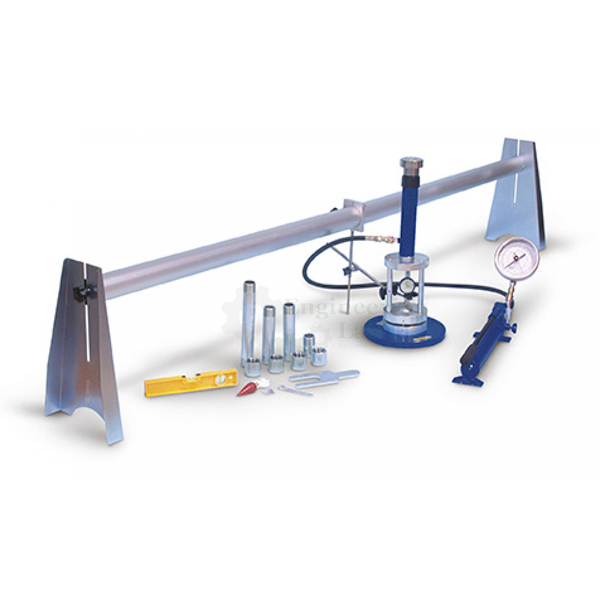

A plate load test applies load in steps to a rigid steel plate resting on the soil or on a pavement layer and measures how far the plate settles under each step, giving a load-settlement curve from which bearing capacity is assessed. The hydraulic hand pump drives the piston assembly against a reaction load, the pressure transducer and digital readout show the applied load, and three digital dial gauges carried from the 2.4 m datum bar record the settlement of the plate. The 500 kN set comes with 600 mm and 760 mm plates, and the 200 kN set with 300 mm and 450 mm plates.
What to Specify When Ordering
- Quantity — the number of plate load test sets required.
- Capacity — the 500 kN set with 600 mm and 760 mm dia. plates, or the 200 kN Plate Loading Test Set with 300 mm and 450 mm dia. plates.
Frequently Asked Questions
What load capacities are offered?
Two sets are available: one with a 500 kN capacity piston assembly and the Plate Loading Test Set with a 200 kN capacity piston assembly, each worked by a hydraulic hand pump.
Which loading plates come with each set?
The 500 kN set has loading plates of 600 mm and 760 mm diameter, while the 200 kN set has plates of 300 mm and 450 mm diameter.
How are load and settlement read?
Load is measured by a pressure transducer connected to an LPI battery operated digital readout unit, and settlement by three digital dial gauges of 25 mm travel × 0.01 mm mounted on supports from the 2.4 m datum bar.
Can it be used on pavements as well as soil?
Yes. Besides bearing capacity tests on soil, it is used to load-test soil and flexible pavement layers when airport and highway pavements are being evaluated and designed.
Which standards cover the plate load test here?
For both the 500 kN and the 200 kN sets, the standards listed are ASTM D1194, D1195, D1196 and BS 1377:9.
What should an export enquiry for this apparatus include?
An export enquiry should state the set and quantity required, the destination country and port or city, delivery terms such as FOB or CIF, any packing requirements and any tender reference.
