Liquid Limit Device Motorized
Product Code : EL-STLE-10935
Quick Answer: A Motorized Liquid Limit Device is used to determine the liquid limit of soil, the water content at which a soil sample, cut by a groove of standard dimensions, flows together for a distance of 1.25 cm under 25 blows. It has a brass cup on an adjustable bracket that is raised and dropped by cam action onto a rubber base, and it is supplied complete with a Casagrande grooving tool, an ASTM grooving tool and a height gauge block. It is manufactured to IS 2720 (Part V), BS 1377-2 and ASTM D 4318 standards.
Liquid limit is the water content at which soil passes from zero strength to an infinitesimal strength, hence the true value of liquid limit cannot be determined. This is a premium quality liquid limit device with counter tools. For determination purposes, liquid limit is that water content at which a part of soil, cut by a groove of standard dimensions, will flow together for a distance of 1.25cm under an impact of 25 blows in a Motorized liquid limit apparatus. Soil at this water content has some strength, which is about 0.17N/cm. sq. (17gms/sq.cm.), and the soil just passes from liquid state to plastic state. Also, these tools are made available in various sizes and shapes.

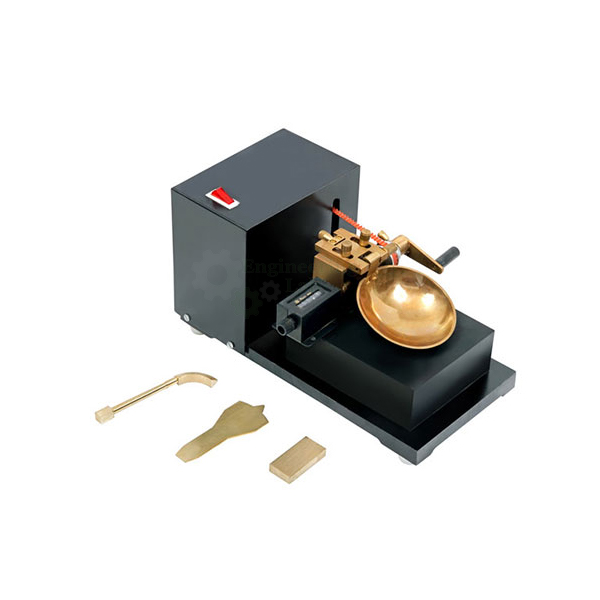

It consists of a brass cup bed held on an adjustable bracket. Material is brass and Fiber. Motorized versions 4kg. It has the voltage of 220v. The cup can be adjusted for a fall of 1cm and can be raised and dropped on a rubber base of standardized hardness by cam action. Complete with one Casagrande grooving tool, one ASTM grooving tool and a height gauge block. The motor gear gives approx. 120 RPM.
Standards: IS 2720 (PART V), BS 1377-2 , ASTM D 4318
