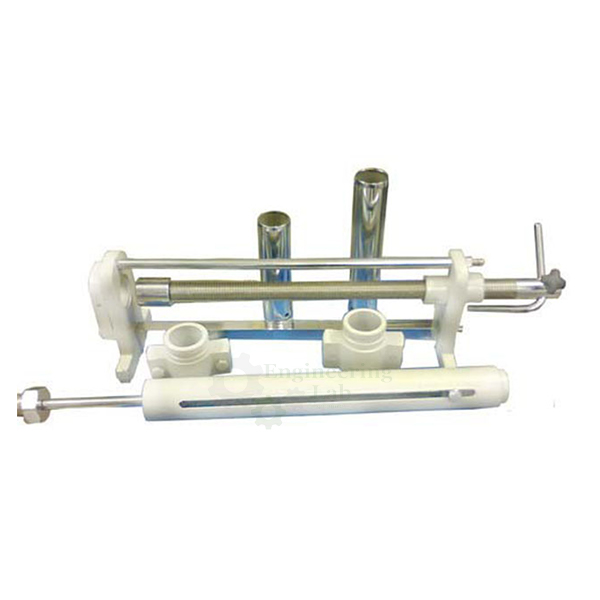

Soil Sampler, Cutter and Extruder
Product Code : EL-STLE-10404
Soil Sampler, Cutter and Extruder (code EL-STLE-10404) is a rack and pinion device for cutting test specimens from a soil core and extruding them ready for consolidation, shear, triaxial, permeability and other soil mechanics tests. The cutter is pushed gently into the core by the rack and pinion and the specimen is then pushed out with the extrusion dolly, with circular, cylindrical and square cutters available to suit the test.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Extruding and preparing soil samples for consolidation, shear, triaxial, permeability and other soil mechanics tests |
| Mechanism | Rack and pinion, pushes the cutter gently into the soil core |
| Extrusion | With the extrusion dolly |
| Cutters | Various circular, cylindrical and square cutters, depending on the geotechnical test to be performed |
| Product code | EL-STLE-10404 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Soil Sampler, Cutter and Extruder Used For?
Laboratory tests on soil need specimens of exact size and shape with as little disturbance as possible, so that the measured strength, compressibility or permeability reflects the soil in the ground. The operator sets the soil core under the cutter, pushes the cutter into it steadily with the rack and pinion, trims the ends and then uses the extrusion dolly to push the specimen out. A circular ring suits a consolidation specimen, a square cutter a direct shear specimen and a cylindrical cutter a triaxial specimen.
What to Specify When Ordering
- Quantity — the number of sampler, cutter and extruder units required.
- Cutters — the circular, cylindrical or square cutters needed for the tests to be performed.
Frequently Asked Questions
Which tests can samples be prepared for?
It prepares soil samples for consolidation, shear, triaxial and permeability tests, as well as for other soil mechanics tests.
How is the cutter pushed into the soil?
A rack and pinion mechanism pushes the cutter gently into the soil core, after which the specimen is extruded with the extrusion dolly.
What cutter shapes are available?
Circular, cylindrical and square cutters are available, and the shape is chosen according to the geotechnical test to be performed.
How can this sampler be ordered?
Use the Add To Cart enquiry button on this page, or send the quantity, the cutters needed and the delivery location through the contact page.
OEM Manufacturer
The Soil Sampler, Cutter and Extruder is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests soil testing equipment for classification, compaction, density, shear and consolidation tests for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
