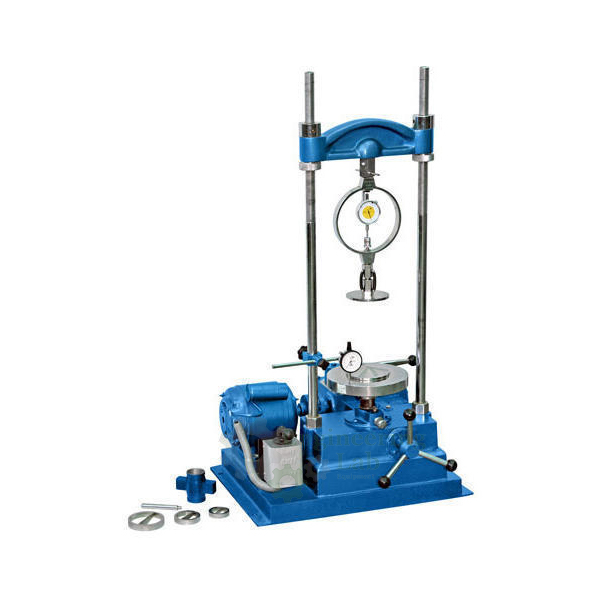

Unconfined Compression Tester (Motorized)

Product Code : EL-STLE-10381

Unconfined Compression Tester (Motorized) (code EL-STLE-10381) is a screw operated load frame of 5000 kg capacity for unconfined compression tests on soil specimens. A gear box and motor drive give rates of strain of 1.25, 1.5 and 2.5 mm/min on a 230 V single phase A.C. supply, and the frame comes with a pair of cone seatings, a proving ring adaptor, a strain dial gauge bracket and one pair of coning tools for 38 mm samples.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Unconfined Compression Tester (Motorized) Used For?

The unconfined compression test loads a cylindrical specimen of cohesive soil along its axis, with no lateral support, until it fails, and half of the failure stress is taken as the undrained shear strength of a saturated clay. The specimen is seated between the cone seatings using the coning tools, with a proving ring fitted through its adaptor to measure load and a dial gauge on the bracket to measure axial strain. The motor then drives the screw frame at the selected rate of strain, and load and deformation are read at intervals until the specimen fails or the strain limit for the test is reached.

What to Specify When Ordering

• Quantity — the number of testers required.
• Coning tools — any additional pairs needed for 50, 75 or 100 mm dia. samples, beyond the 38 mm pair supplied.

Frequently Asked Questions

What load capacity does the frame have?
The screw operated load frame has a capacity of 5000 kg and is driven through a gear box by an electric motor running on 230 V single phase A.C.

Which strain rates are available?
The gear box and motor drive give a choice of three rates of strain: 1.25 mm/min, 1.5 mm/min and 2.5 mm/min.

Are the proving ring and dial gauge included?
No. Only one pair of male/female coning tools for 38 mm dia. samples comes with the frame; the proving ring and dial gauge are not part of the supply and fit the adaptor and bracket provided.

What sample sizes can the coning tools prepare?
Male and female coning tools are available in pairs for samples of 38, 50, 75 and 100 mm diameter; the 38 mm pair comes with the tester.

What result does an unconfined compression test give?
It gives the unconfined compressive strength of a cohesive soil specimen loaded without lateral support; for saturated clays, half of this value is taken as the undrained shear strength.

Which standards are given for the tester?
For unconfined compression testing of soil on this frame, the standards listed are IS 2720 (Part 10) and ASTM D2166/D2166M-16.

OEM Manufacturer

Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Unconfined Compression Tester (Motorized) at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its soil testing equipment for classification, compaction, density, shear and consolidation tests go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.

Related Soil Testing Equipment

• Direct Shear Test Apparatus — electrically driven shear box for 60 × 60 × 25 mm soil specimens with 12 strain rates.
• In-Situ Vane Shear Test Apparatus — borehole vane shear set with 37.5 mm and 50.0 mm vanes and proving ring torque head.
• Laboratory Vane Shear Apparatus (Motorized) — motorised laboratory vane at 1/60 rpm with four torsion springs in a wooden case.

See the full Soil Testing Lab Equipment range or all Civil Engineering Lab Equipment.

Request a Quote

For this and other soil testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of testers and any extra coning tools for 50, 75 or 100 mm samples and the delivery location through the contact page; the Add To Cart button on this page also adds the Unconfined Compression Tester (Motorized) to an enquiry.
