Cut Model of Rear Axle with Locking Differential
Product Code : EL-AELE-10729

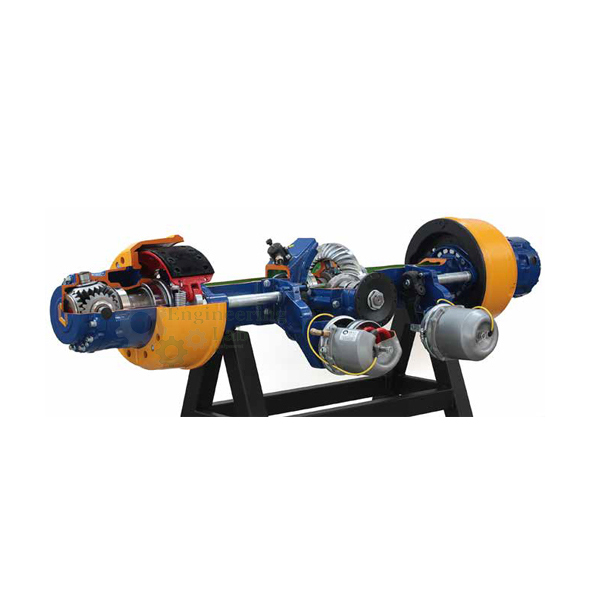

Quick Answer: The Cut Model of Rear Axle with Locking Differential is a cutaway training model that reveals the internal parts of a rear axle assembly with a locking differential, including the axle shafts, bevel (pinion-crown) gear, satellite and planetary differential, reducer and hub planetary, and brakes with drum and double air brake element. It is professionally painted with different colours to differentiate parts and cross-sections, and it is mounted on a tubular frame with many parts chromium-plated and galvanized for a longer life.
The cutaway model of rear axle with locking differential is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts and cross-sections. Many parts have been chromium-plated and galvanized for a longer life, and the model is mounted onto a tubular frame.
The painting is carried out in such a way that different colors are used for different components, such as identification of the sectioned area, according to a colour code for easy identification of different systems and mechanisms. A suitable imported colour painting is carried out along with a Miracle coating for extra gloss and shine, and all the hardware and gears are suitably electroplated.
FEATURES:
Operated: Manually (Through a Crank Handle)
Equipment Layout: On Base
Fine finish
Simple operations
Functional accuracy
SPECIFICATION:
The main components are:
Axle shafts
Bevel gear (pinion – crown)
Differential (satellite and planetary) with locking differential
Reducer and planetary on the hub
Brakes with jaws/drum
Double air brake element
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 950 x 500x 450mm
Weight (approx.): 205kg
