Section Vehicle Chassis Trainer
Product Code : EL-AELE-10738

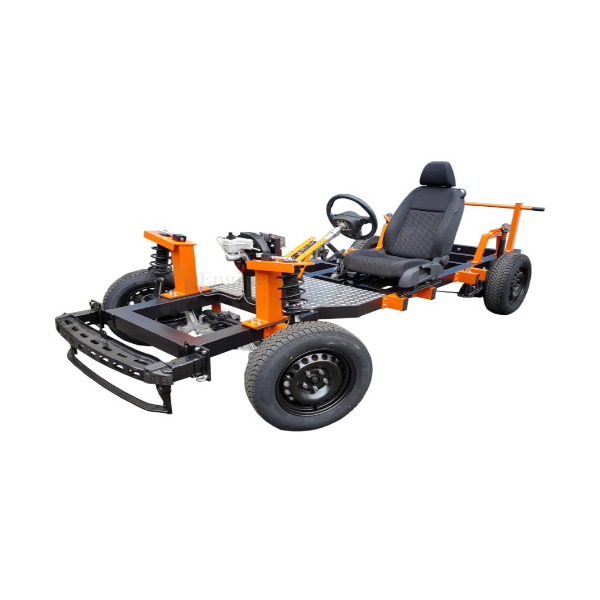

Section Vehicle Chassis Trainer (code EL-AELE-10738) is a complete functional chassis of an actual car, prepared for teaching so that additional systems can be attached to it. Its tubular steel frame of square section tube, with continuously welded joints and crossbars, carries an original driver's seat and rolls on four steel wheels with new tyres, and it has holding and lashing points, a rear push handle and a rear axle with eccentrics and engraved timing marks.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Complete functional chassis of an actual car, prepared for teaching and for attaching additional systems |
| Frame | Tubular steel frame of square section tube for the lateral and side rails |
| Joints | Continuously welded |
| Stiffening | Crossbars giving a rigid structure |
| Seat | Original driver's seat with all available options |
| Wheels | Four steel wheels with new tyres |
| Fixing | Holding and lashing points for fixing the chassis on test benches |
| Handling | Rear-mounted push handle |
| Rear axle | Eccentrics and engraved timing marks |
| Axle settings | Lead, caster, camber, toe, spreading, wheel offset and thrust angle |
| Operation | Manual |
| Layout | On base with wheels |
| Colour | Available in any colour |
| Dimensions | Approx. 3200 × 1500 × 900 mm (L × W × H) |
| Weight | Approx. 650 kg |
| Product code | EL-AELE-10738 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Section Vehicle Chassis Trainer Used For?
Wheel alignment depends on angles such as caster, camber and toe, which decide how the tyres meet the road and how the car steers and wears its tyres. On this chassis the axle components carry the full set of settings, including lead, caster, camber, toe, spreading, wheel offset and thrust angle, so students can measure and adjust them on a real car frame, using the eccentrics and engraved timing marks on the rear axle. The chassis can be secured on test benches by its holding and lashing points, moved with the rear push handle, and fitted with further systems as the course progresses.
What to Specify When Ordering
- Quantity — how many section chassis trainers are to be supplied.
- Colour — the chassis colour wanted, as the chassis is available in any colour.
Frequently Asked Questions
Is the chassis taken from a real car?
Yes, it is a complete functional chassis of an actual car, prepared for teaching so that additional systems can be attached to it.
Which alignment settings can be practised?
The axle components have all the settings, including lead, caster, camber, toe, spreading, wheel offset and thrust angle, and the rear axle has eccentrics and engraved timing marks.
How is the frame built?
The chassis has a tubular steel frame made of square section tube for the lateral and side rails, with all joints continuously welded and crossbars giving a rigid structure.
Can it be fixed to a test bench?
Holding and lashing points allow the chassis to be fixed on test benches, and a rear-mounted push handle helps when moving it on its four steel wheels.
Can a colour be chosen?
Yes, the chassis is available in any colour. It measures about 3200 × 1500 × 900 mm and weighs approximately 650 kg.
What is the way to place an order?
Use the enquiry button marked Add To Cart here, or state the quantity and the delivery location through the contact page.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Section Vehicle Chassis Trainer at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its automobile engineering cut-section models, working models and trainers go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
