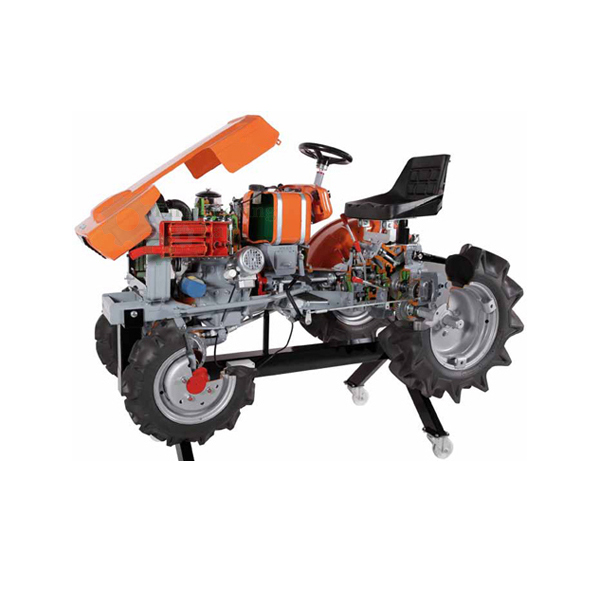

Cut Model of Agricultural Tractor
Product Code : EL-AELE-10725
Cut Model of Agricultural Tractor (code EL-AELE-10725) is a dissectible cut section of an actual tractor, with actual parts assembled on an iron frame to show students how the internal parts of the tractor work. The sectioned assemblies include the air intake, cylinder block and head, crank case, cooling, fuel supply and exhaust systems, oil pump, clutch, gear box, transmission and final drive with rear axle, on a powder coated stand of approx. 2200 × 1200 × 1400 mm.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Demonstrating the working of the internal parts of a tractor |
| Construction | Actual tractor cut section; actual parts assembled on an iron frame |
| Dissection | Made dissectible for demonstration |
| Engine parts | Air intake system, cylinder block, cylinder head, crank case, oil pump |
| Engine systems | Cooling system, fuel supply system, exhaust systems |
| Drive line | Engine/chassis drive, clutch, gear box, transmission, final drive/rear axle |
| Finish | Powder coated stand; all other parts coloured in different colours |
| Supplied with | Key card and literature on the working of the tractor |
| Dimensions | Approx. 2200 × 1200 × 1400 mm (L × W × H) |
| Weight | Approx. 650 kg |
| Product code | EL-AELE-10725 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Cut Model of Agricultural Tractor Used For?
In a tractor, engine power passes through the clutch, gear box and transmission to a final drive that turns the rear wheels, and a sectioned tractor puts that whole path in one place. The instructor starts at the air intake, cylinder block and head, follows the fuel supply, cooling and exhaust systems, then moves through the clutch, gear box and transmission to the final drive at the rear axle. Because the model is dissectible, groups can remove assemblies from the iron frame, check them against the key card and literature, and see how the coloured parts fit together.
What to Specify When Ordering
- Quantity — the number of tractor cut models to be supplied.
Frequently Asked Questions
Which tractor assemblies are sectioned?
The cut section covers the air intake system, cylinder block, cylinder head, crank case, cooling, fuel supply and exhaust systems, engine and chassis drive, oil pump, clutch, gear box, transmission and the final drive with rear axle.
Are actual tractor parts used?
Yes. It is an actual tractor cut section, with the actual parts assembled on an iron frame to demonstrate how the internal parts work.
Can the parts be dismantled?
The model is specially made dissectible for demonstration purposes, and it comes with a key card and literature explaining the working of the tractor.
How is the model finished?
The stand is powder coated, and all the other parts are coloured in different colours so that each assembly can be told apart.
How much floor space does it take?
Approximately 2200 × 1200 × 1400 mm (L × W × H), and the model weighs about 650 kg.
OEM Manufacturer
The Cut Model of Agricultural Tractor is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests automobile engineering cut-section models, working models and trainers for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
